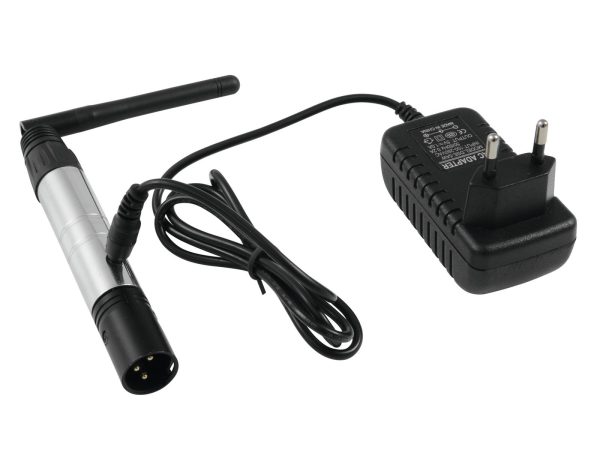

EUROLITE QuickDMX Wireless Receiver

Compact wireless DMX receiver 2.4 GHz

• User-friendly 3-pin XLR adapter (female) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Can receive and process up to 512 DMX channels
• Control via QuickDMX; plug and play
• Operating range up to 400m
• Up to 6 transmitters can be operated in parallel without interference

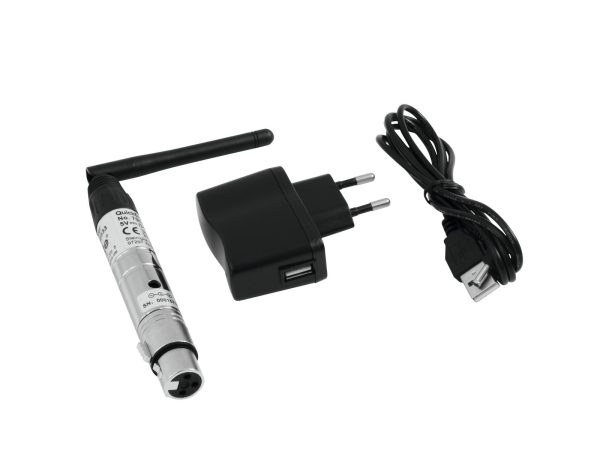

Package contents

• 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x uSB cable
