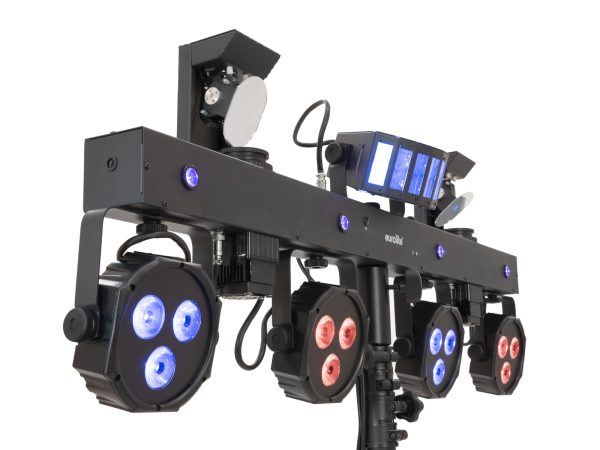

EUROLITE LED KLS Scan Next FX Compact Light Set

 696,15 Excl. Vat

Buy Now Compare
Availability: In Stock

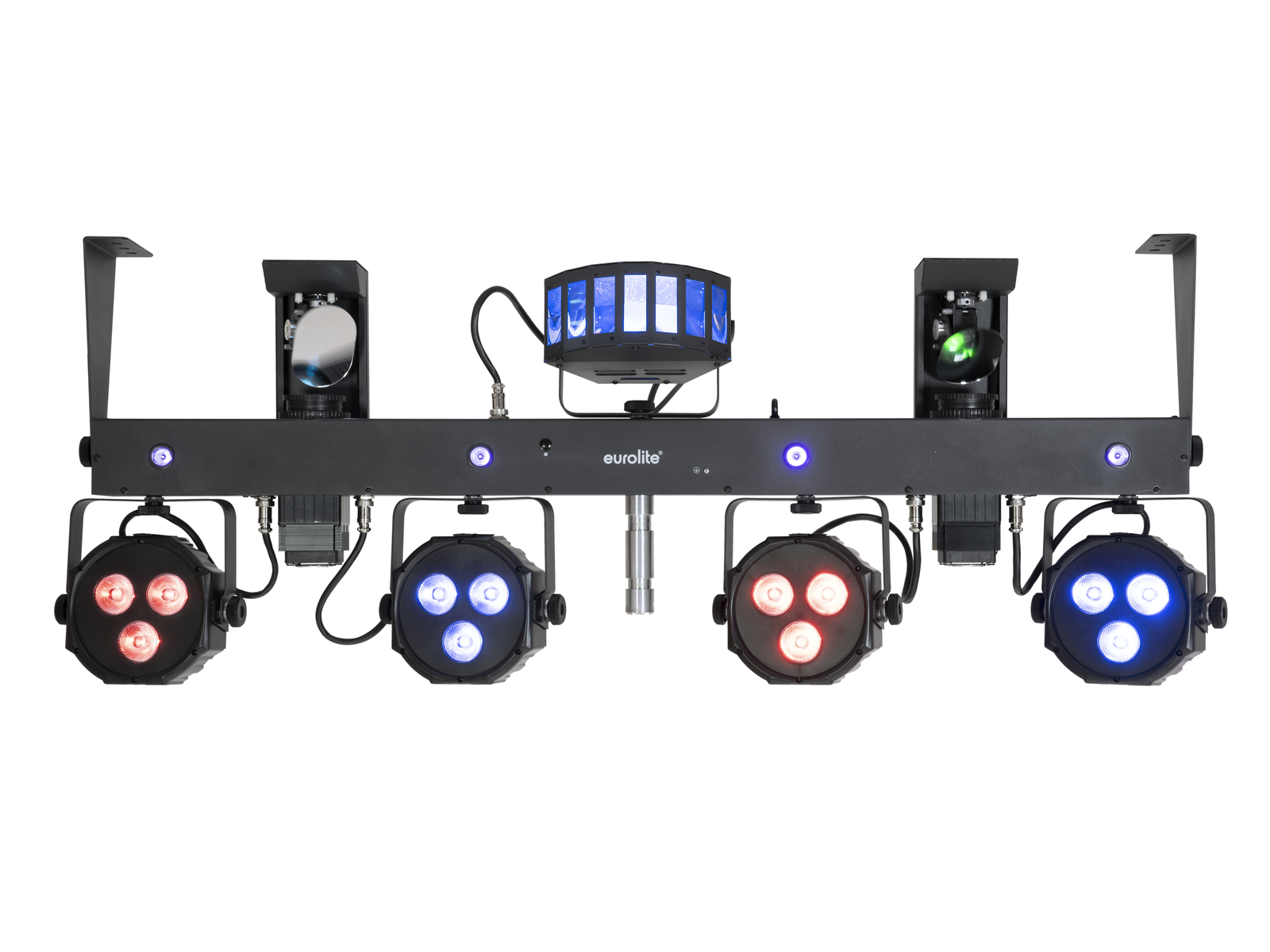

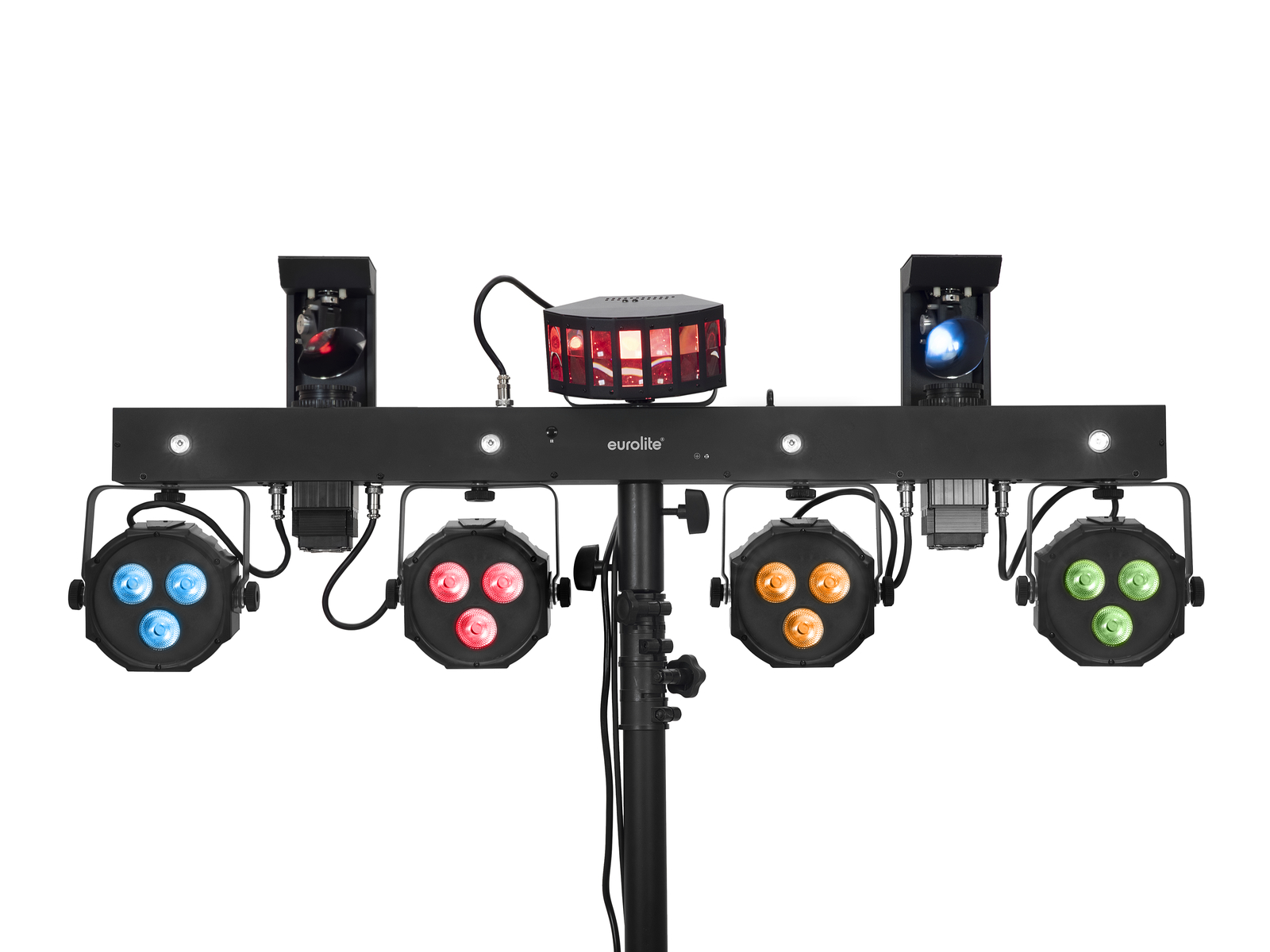

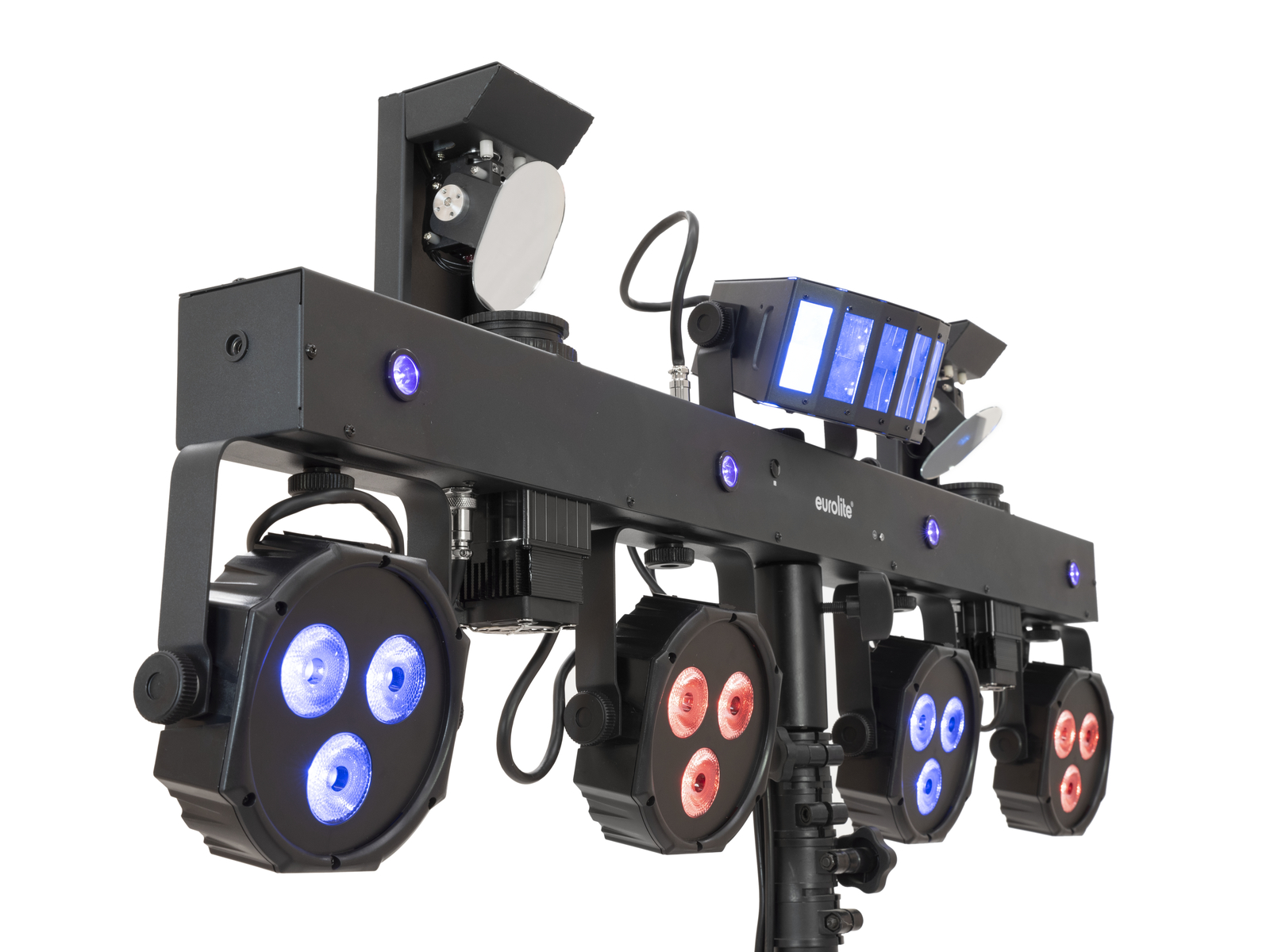

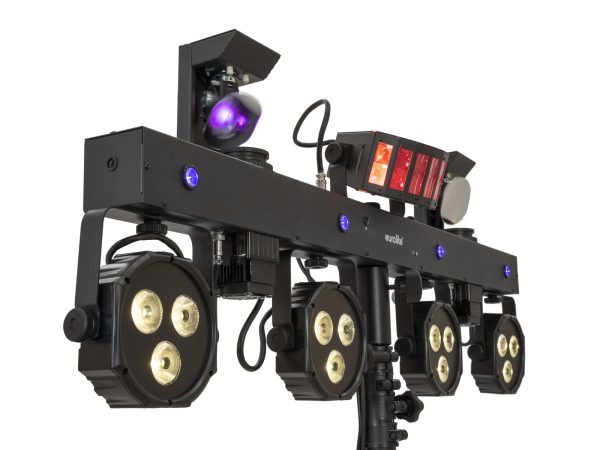

EUROLITE LED KLS Scan Next FX Compact Light Set cover image
LED KLS SCAN NEXT FX BY EUROLITE

Everything in a compact light set

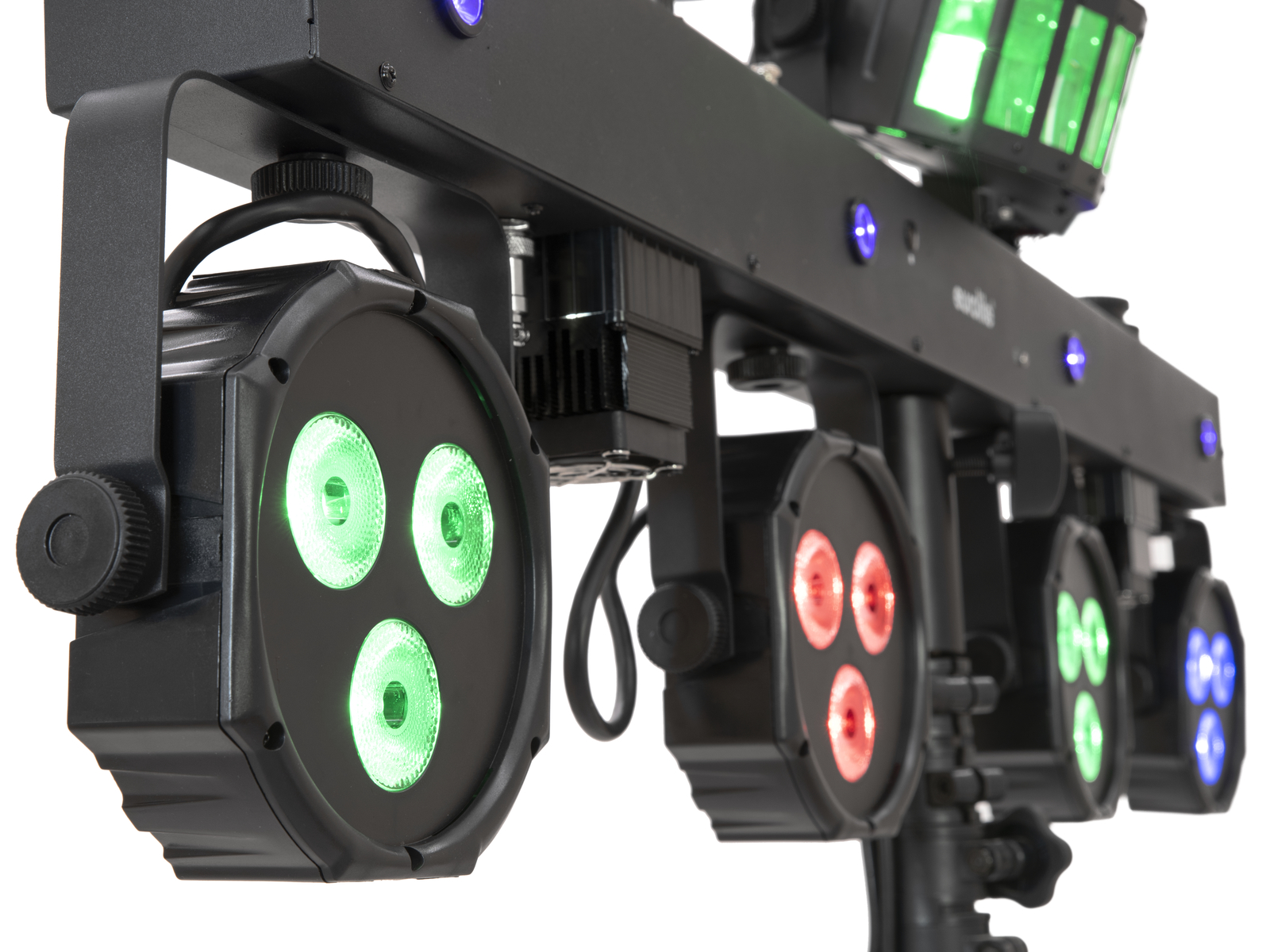

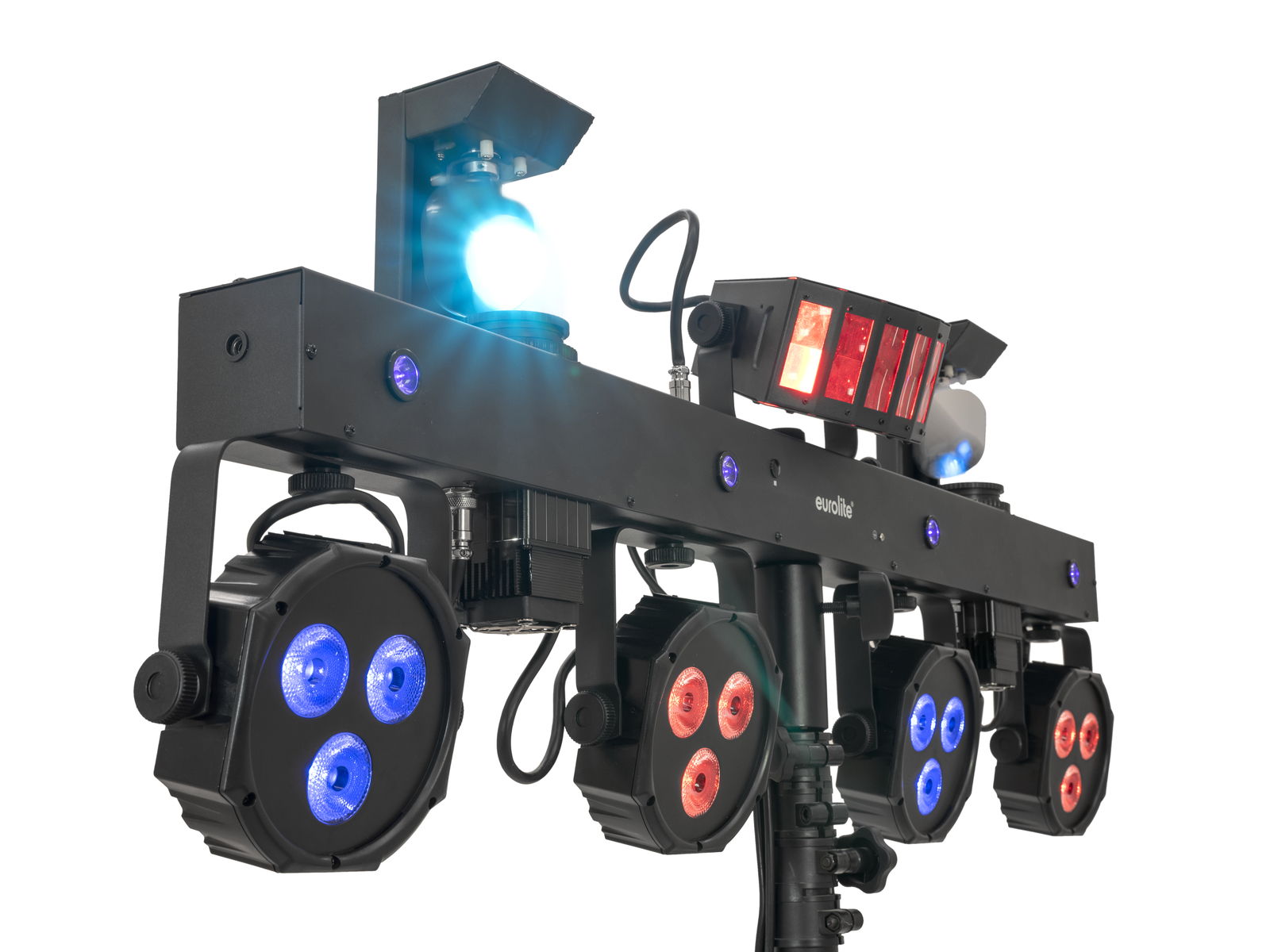

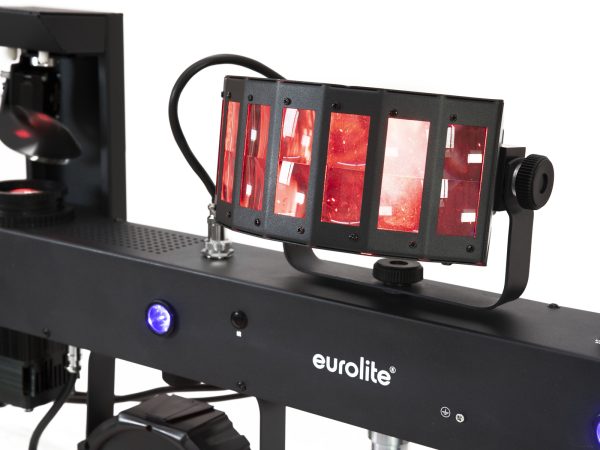

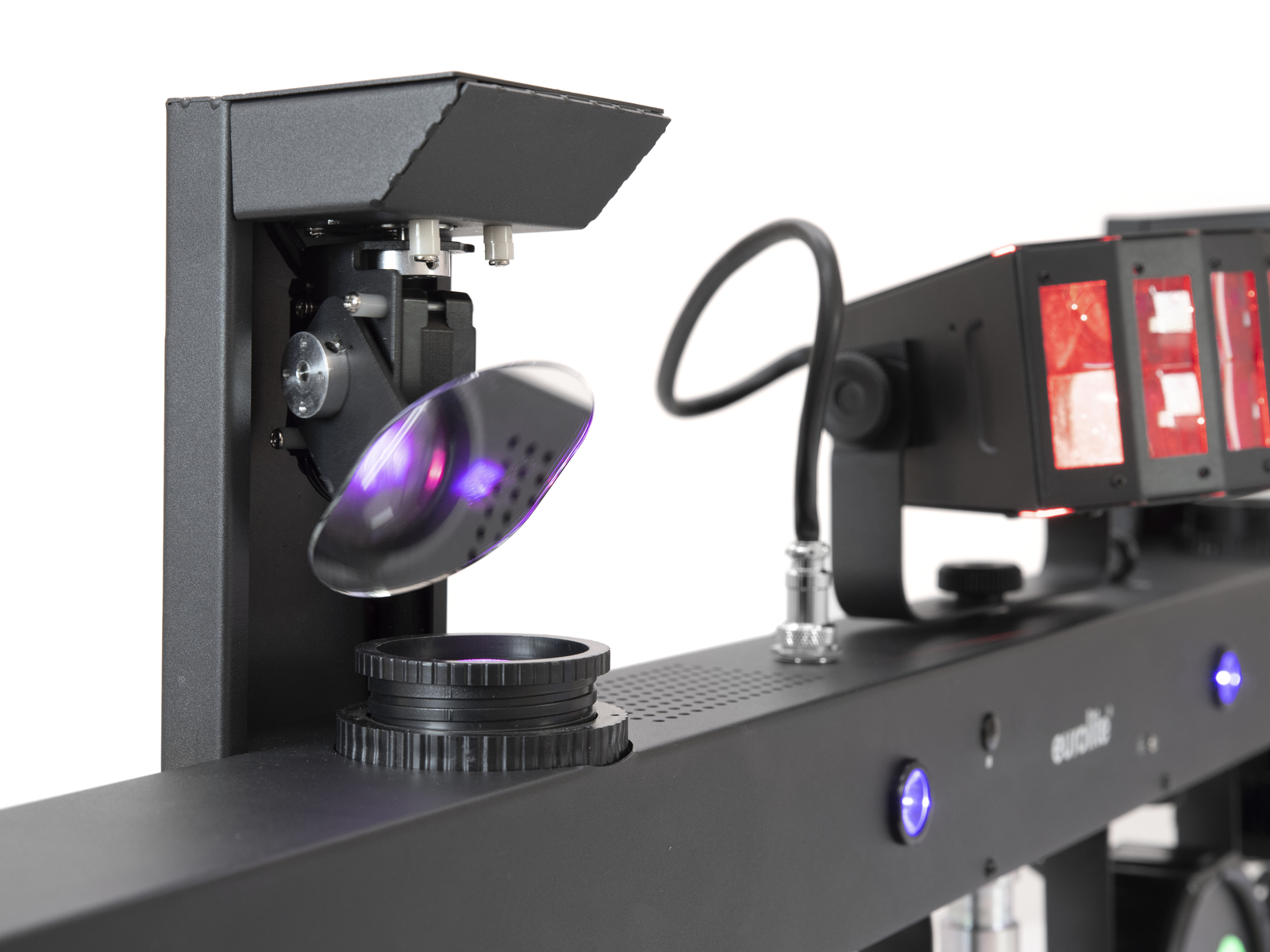

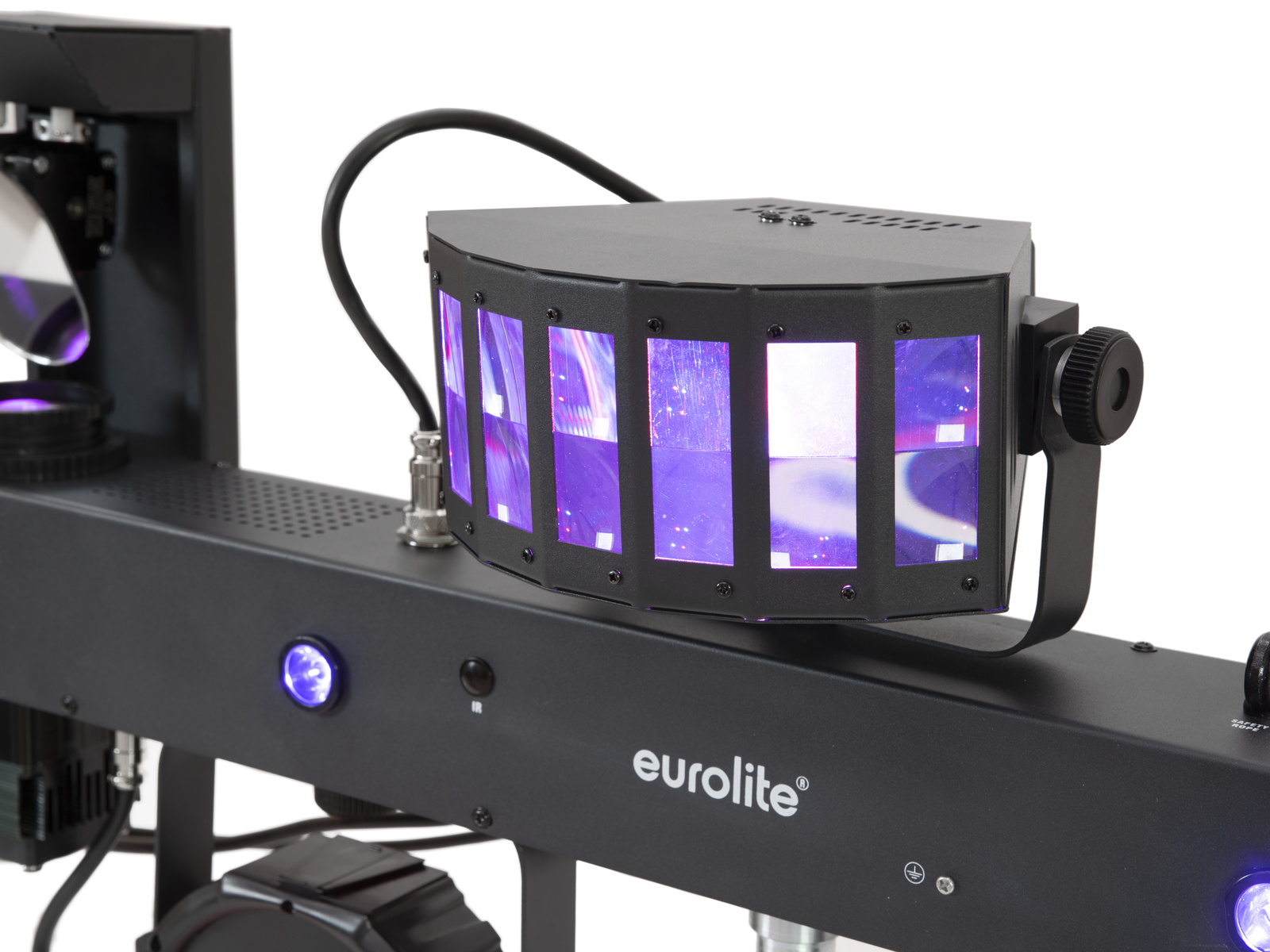

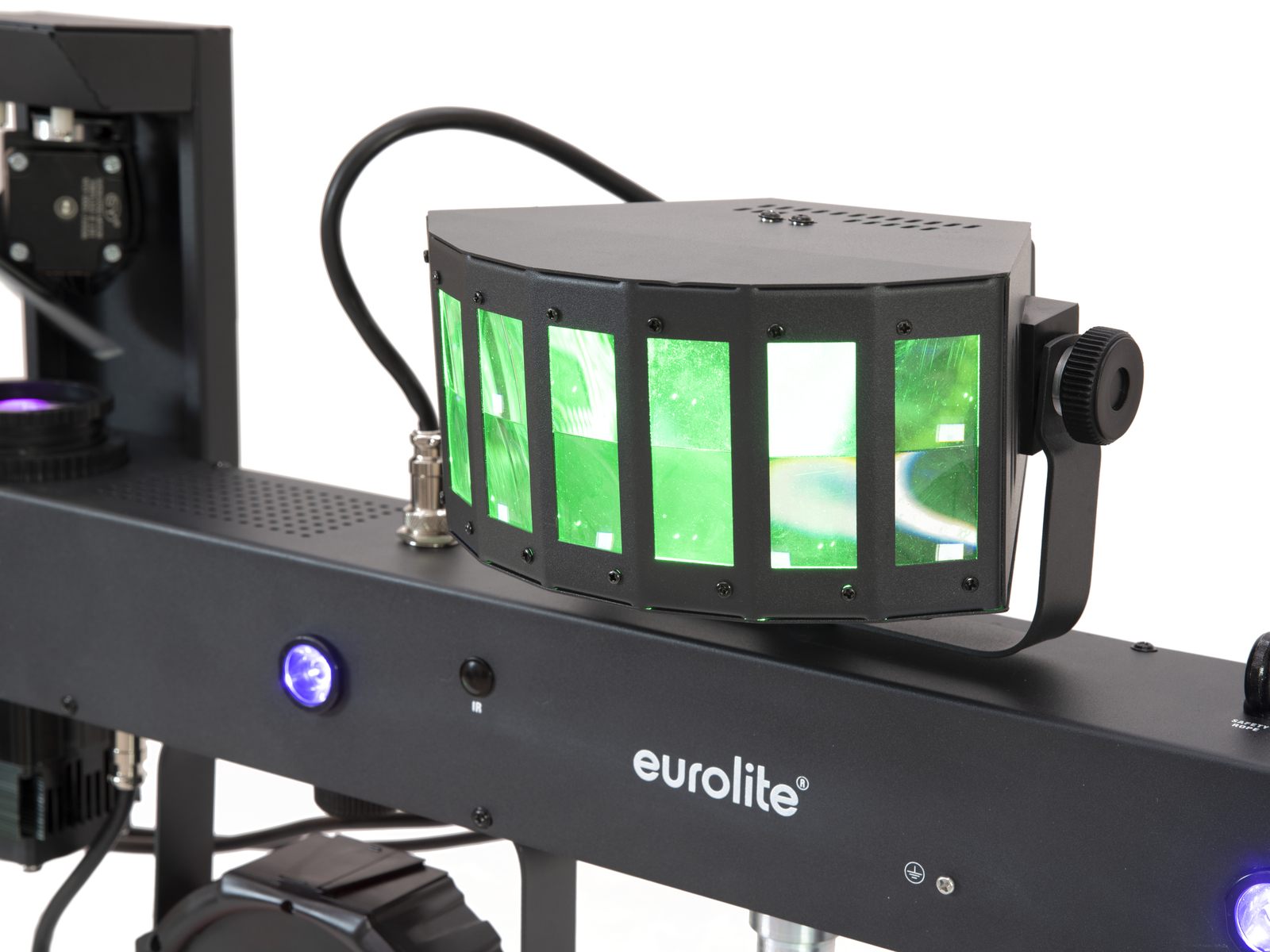

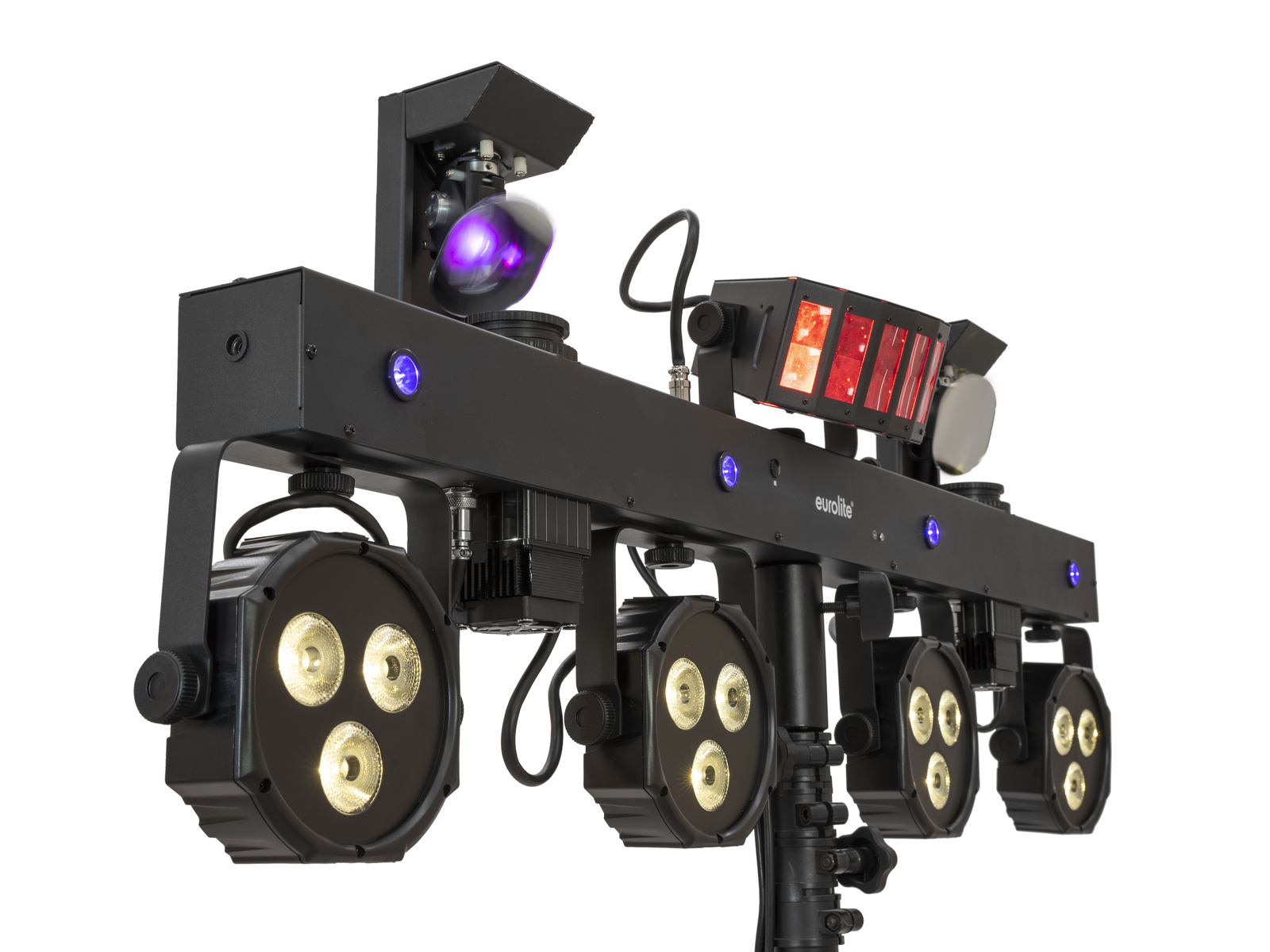

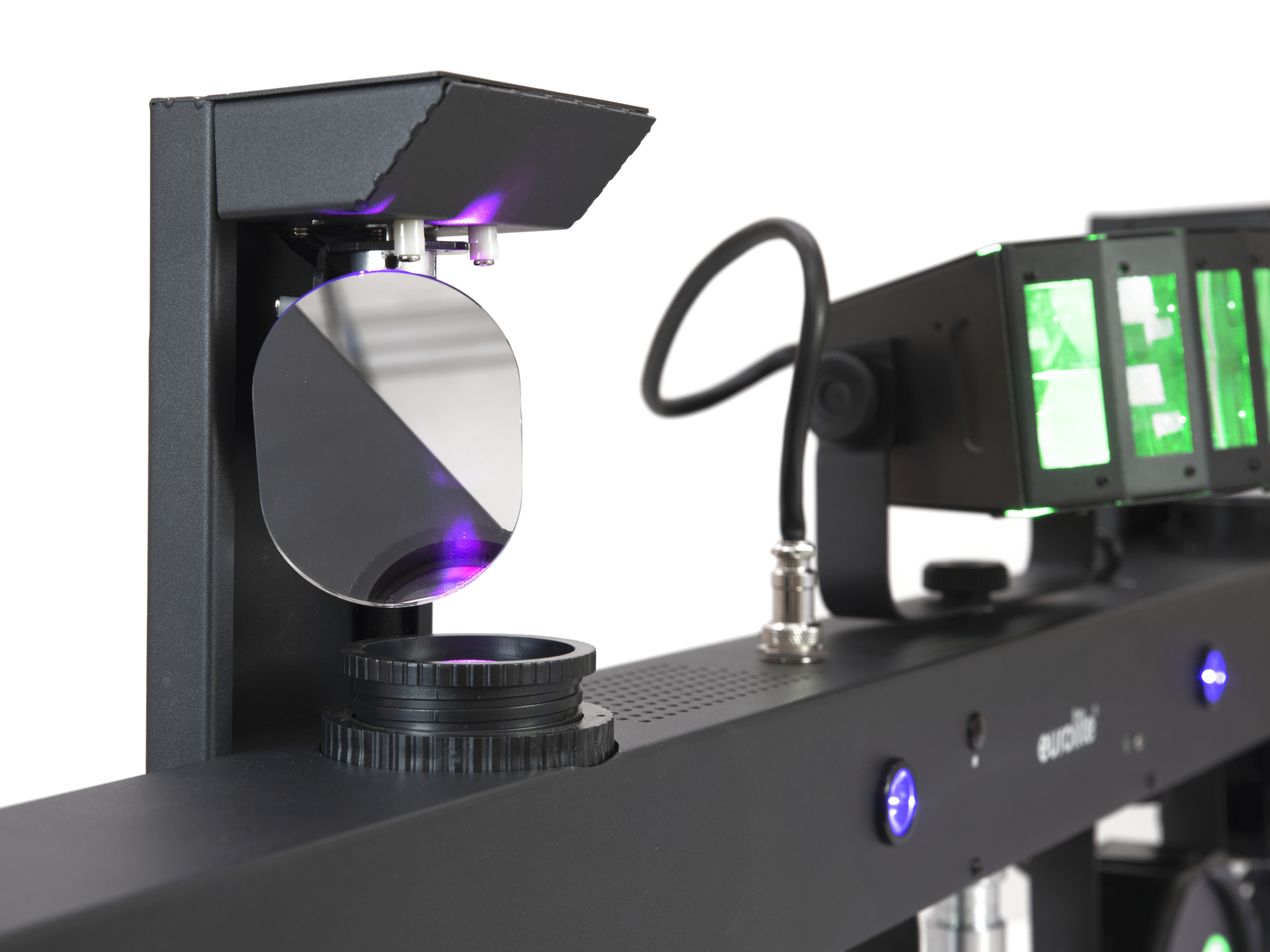

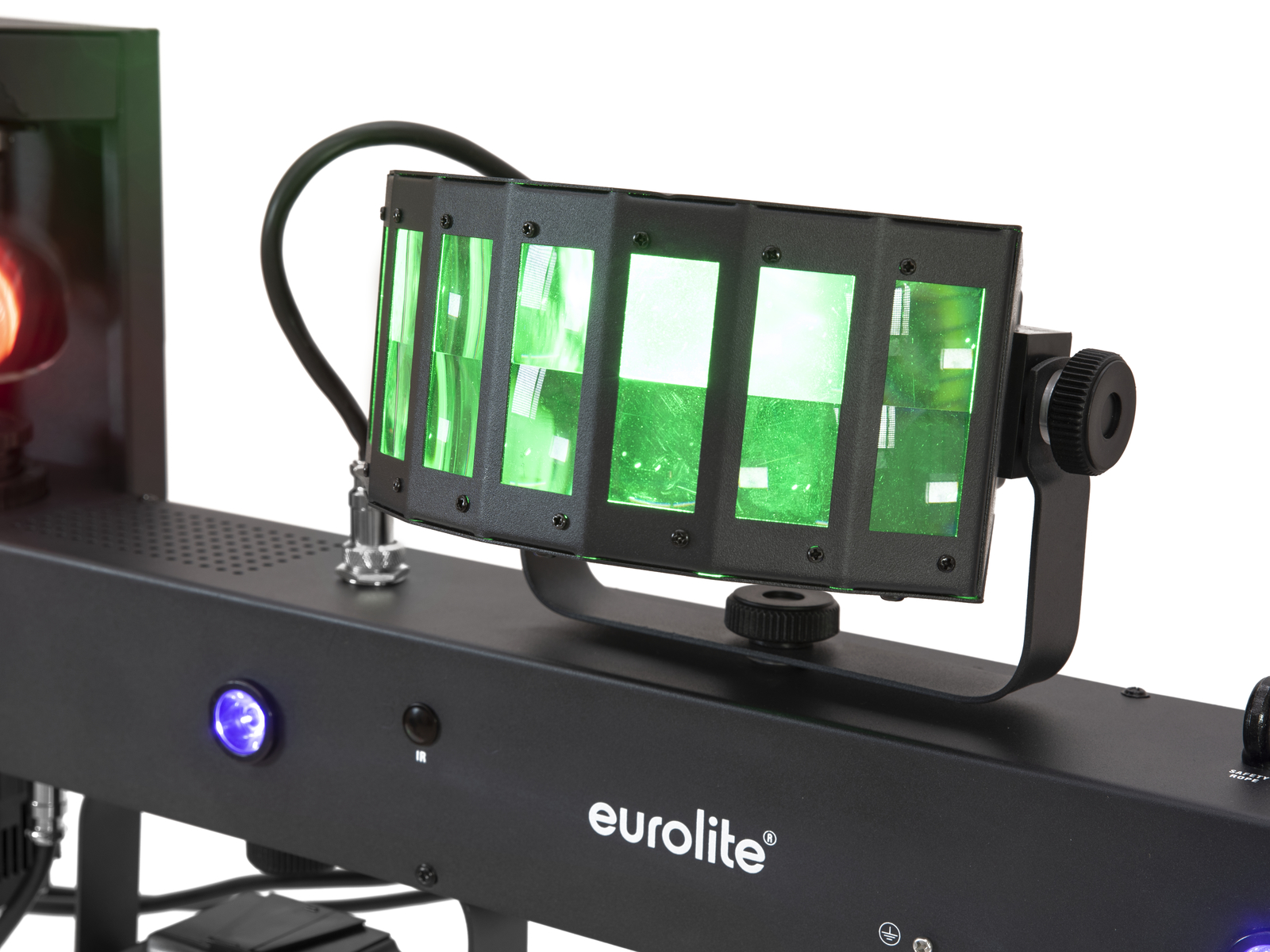

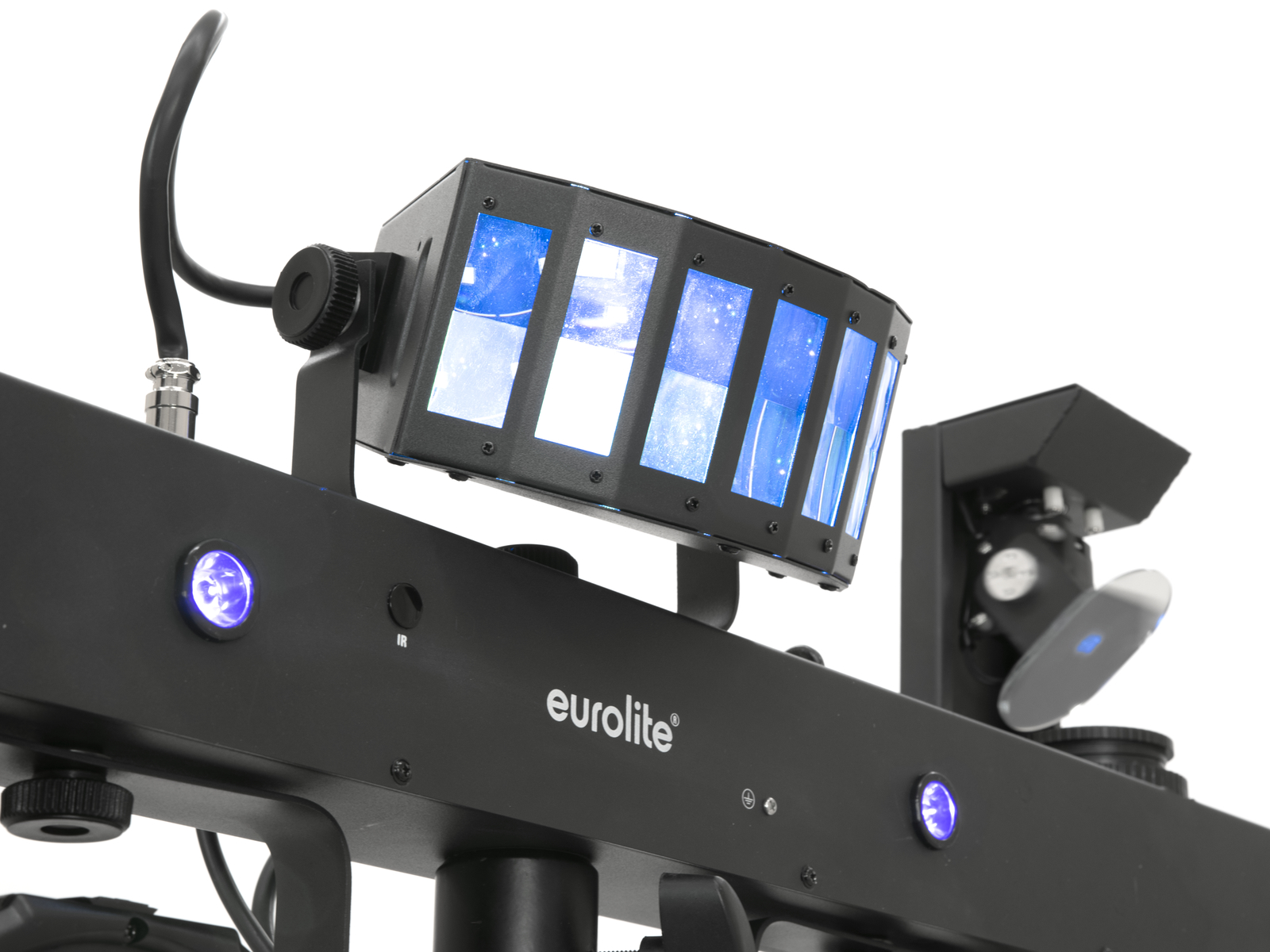

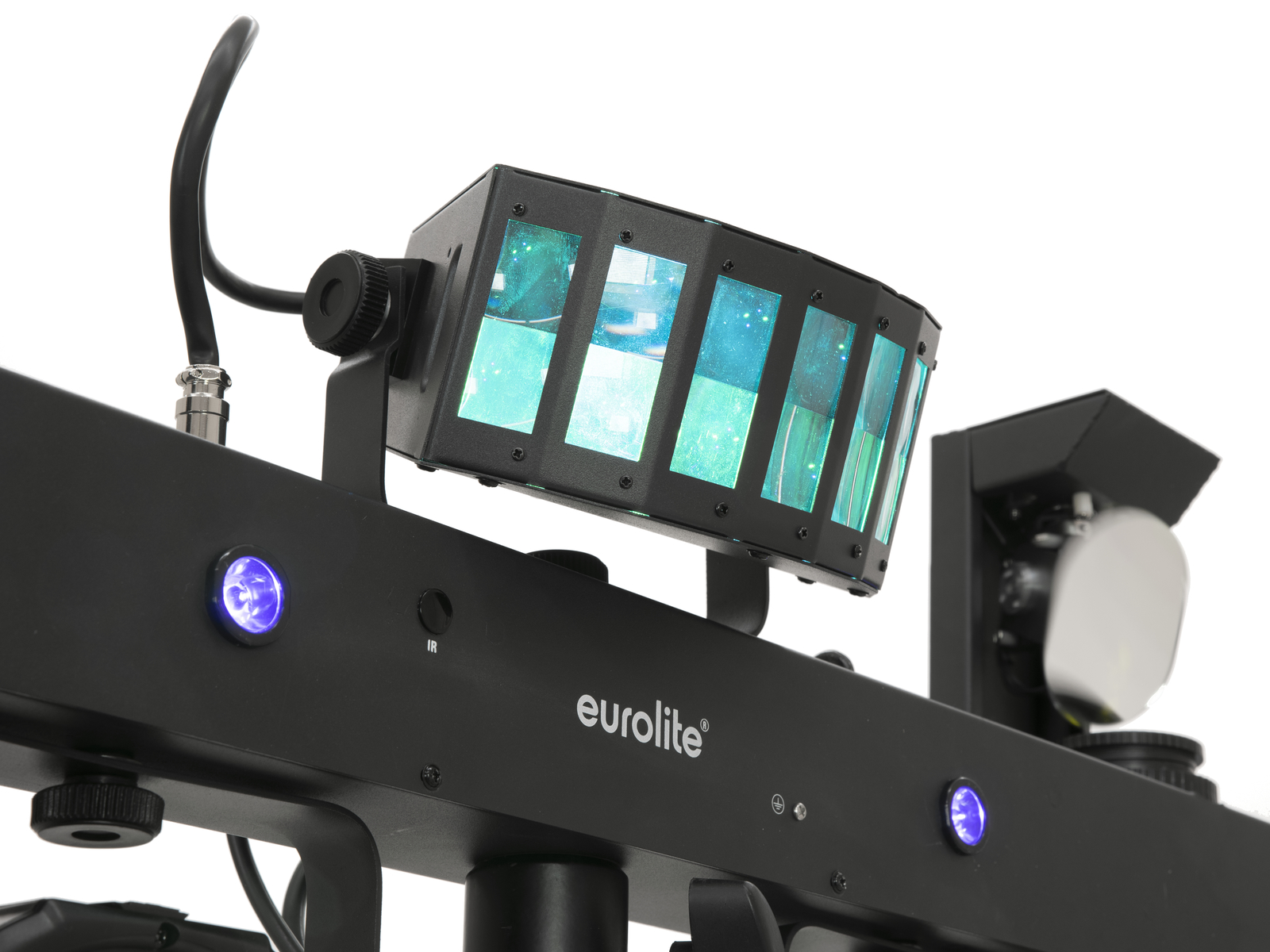

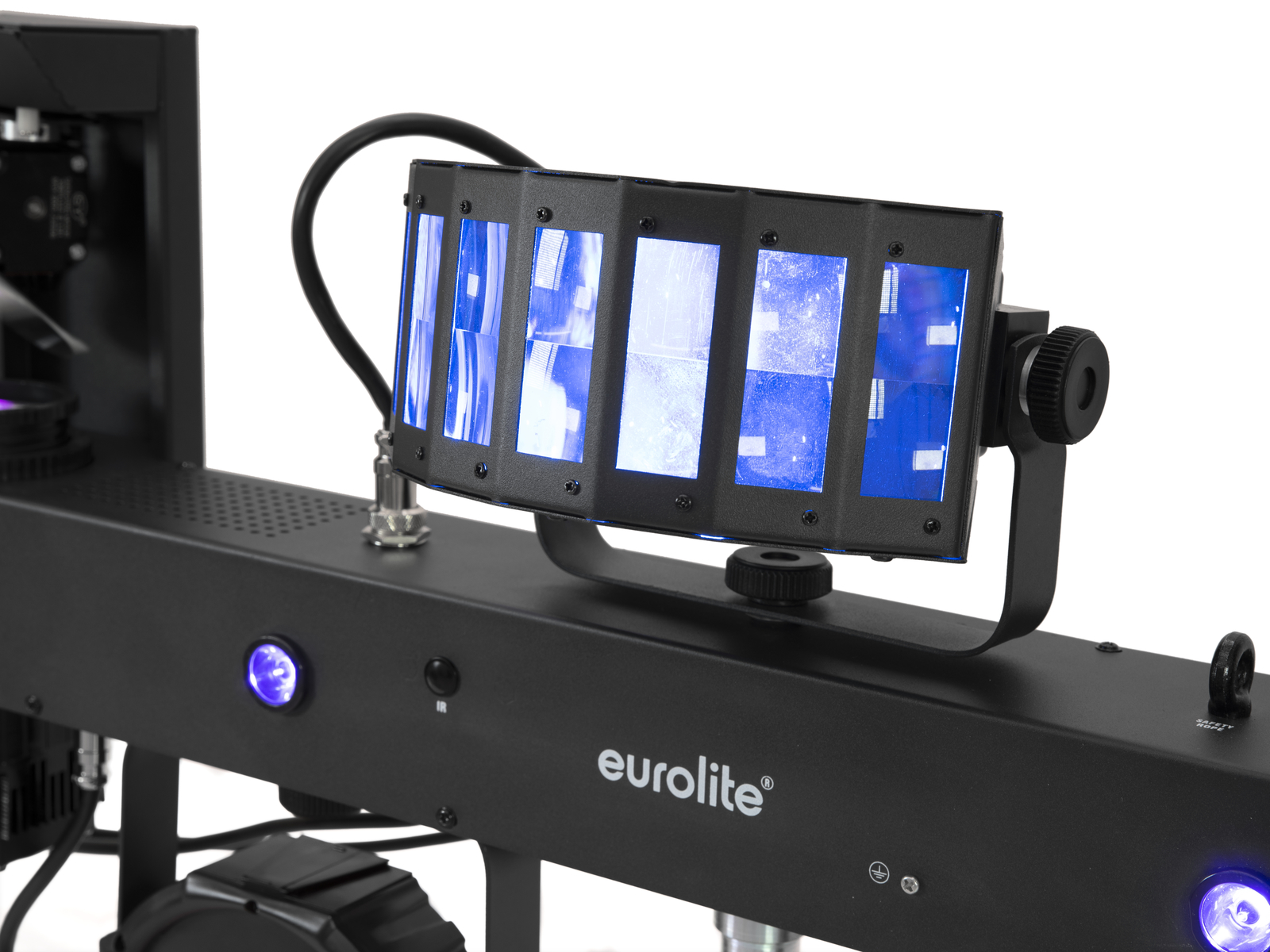

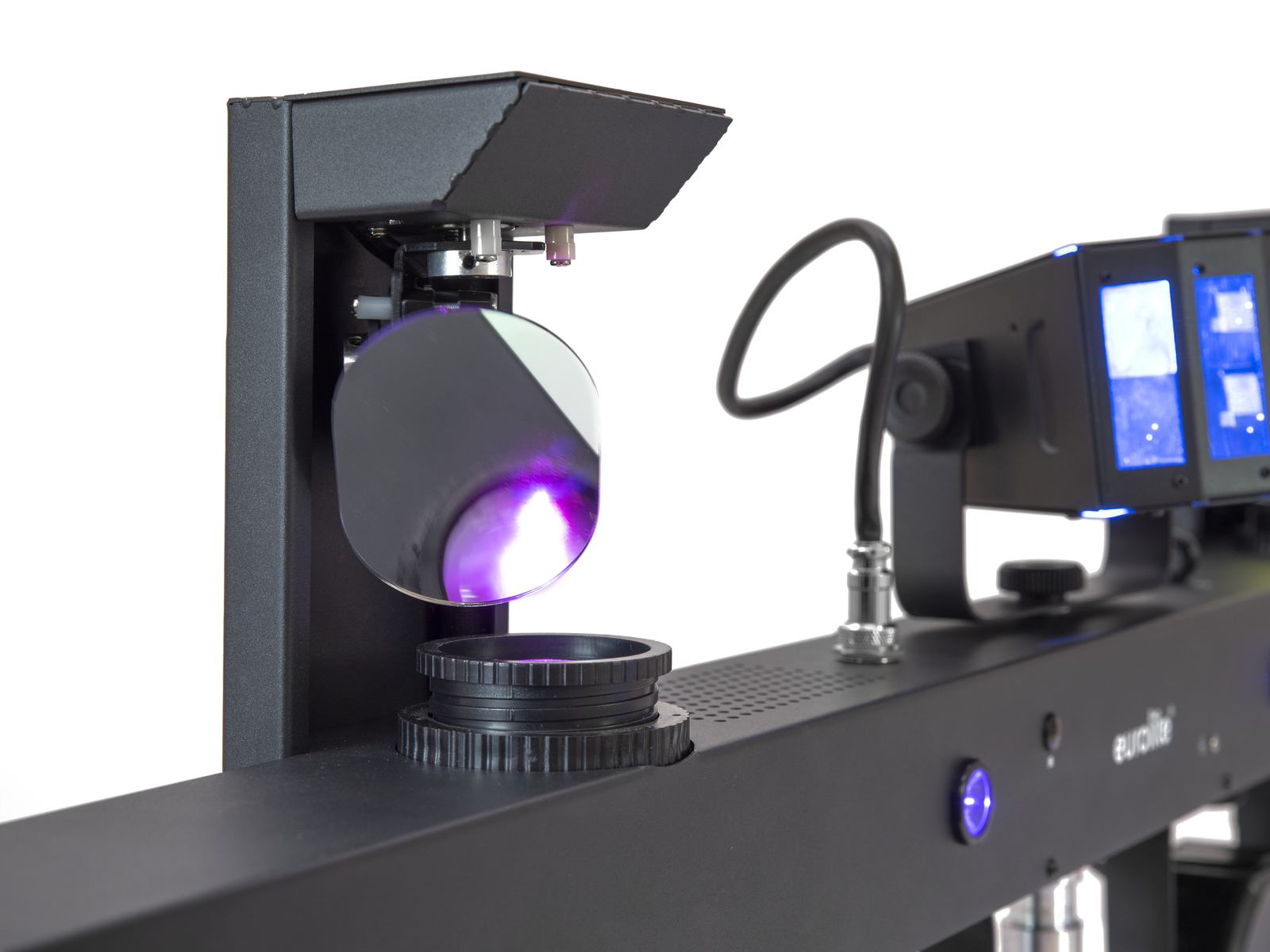

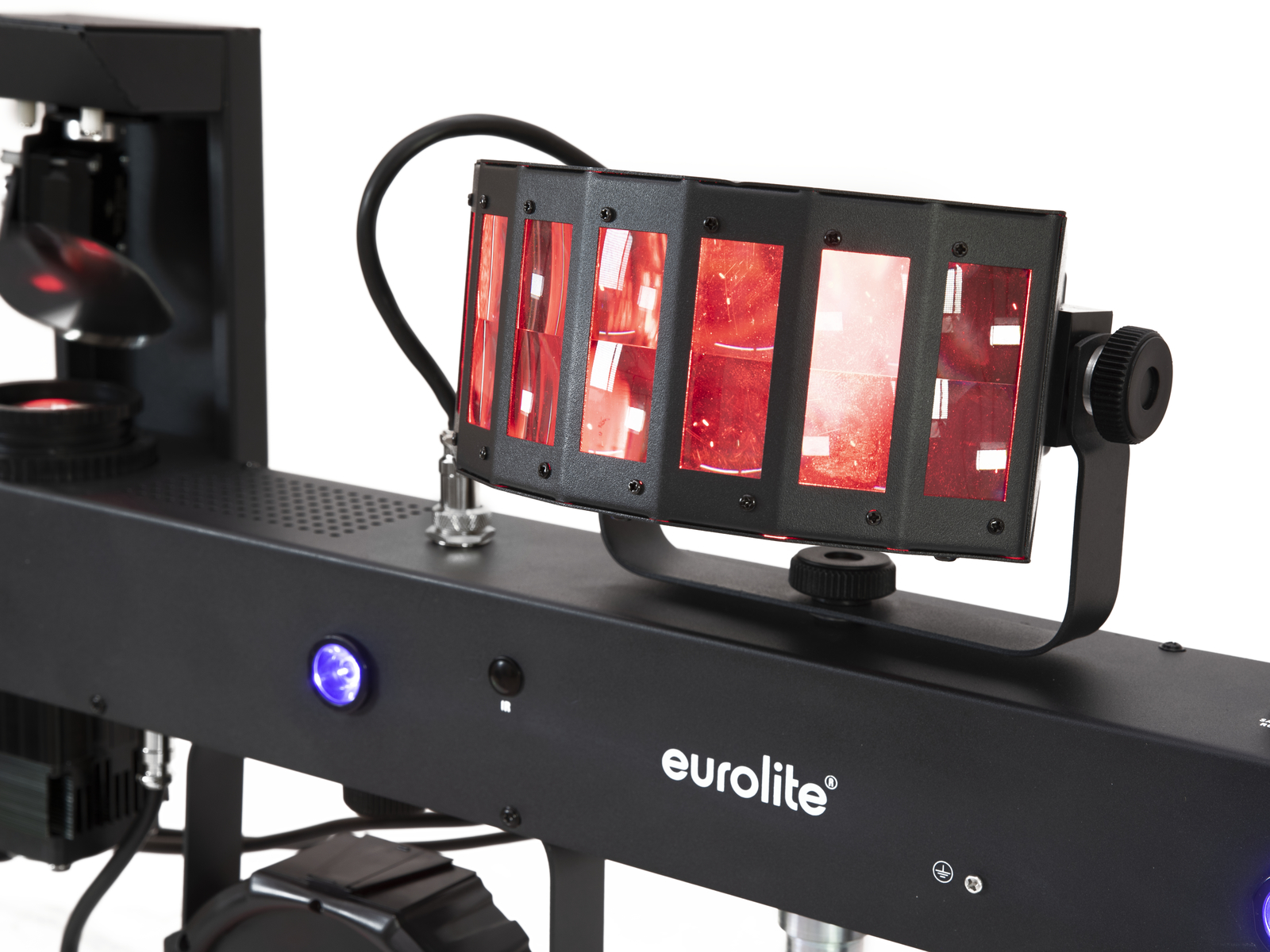

The LED KLS Scan Next FX is equipped with 4 spots for the colored basic lighting, UV LEDs for the popular black light effect and a derby effect for the party atmosphere. But the special feature of this bar is the equipment with two integrated scanners incl. gobo wheel and color wheel. The two scanners are each equipped with a very effective 15-watt LED.
EUROLITE LED KLS Scan Next FX Compact Light Set control
CONTROL VIA STANDALONE, REMOTE CONTROL AND FOOT SWITCH
The control options of the KLS offer something for every user: even without an external controller, 20 different programs can be set that run either automatically or music-controlled. These programs offer well thought-out, carefully selected shows in terms of color. The various programs can be called up and colorful moods created via the infrared remote control supplied. Control via an optional footswitch is also possible.

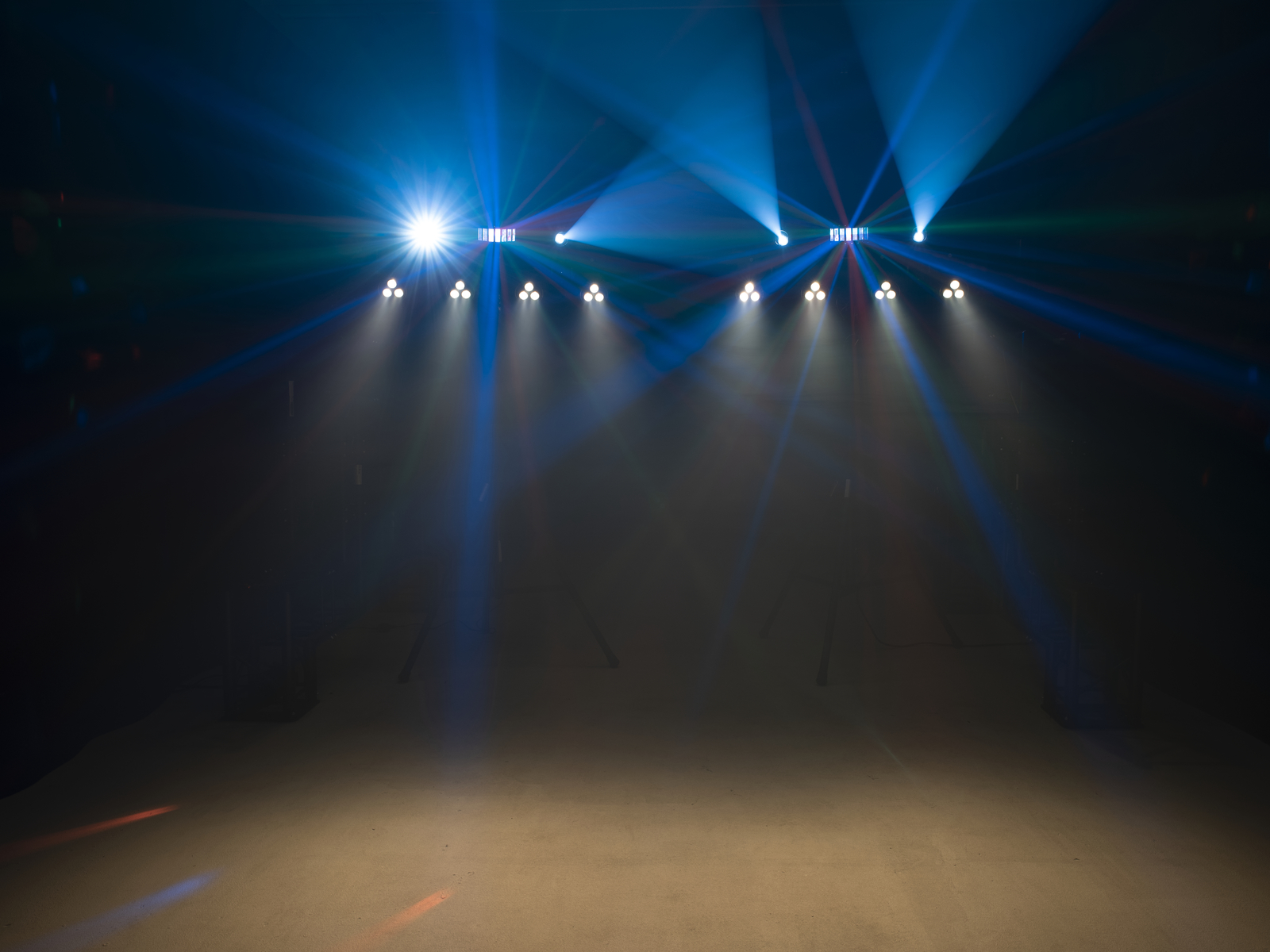

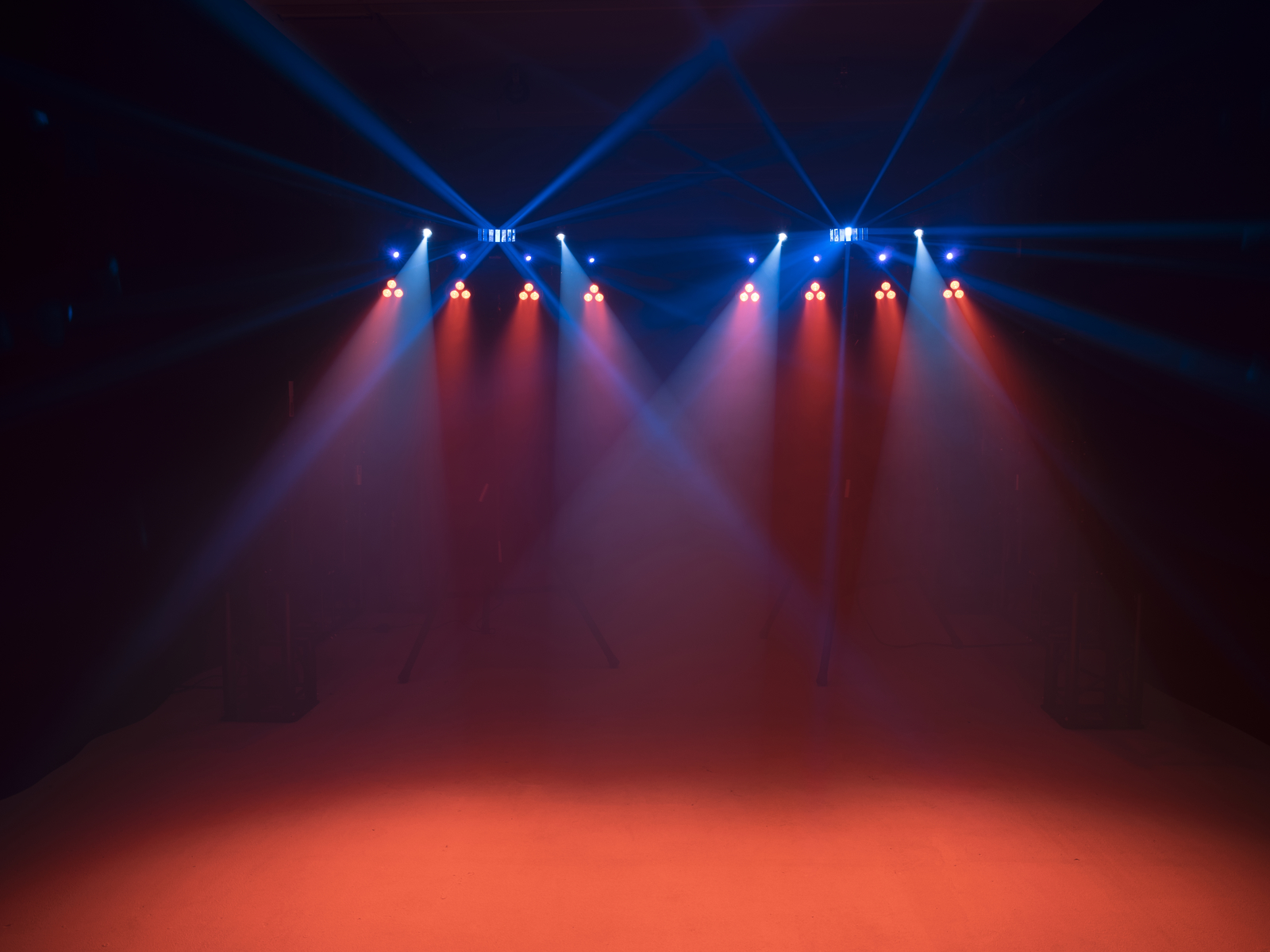

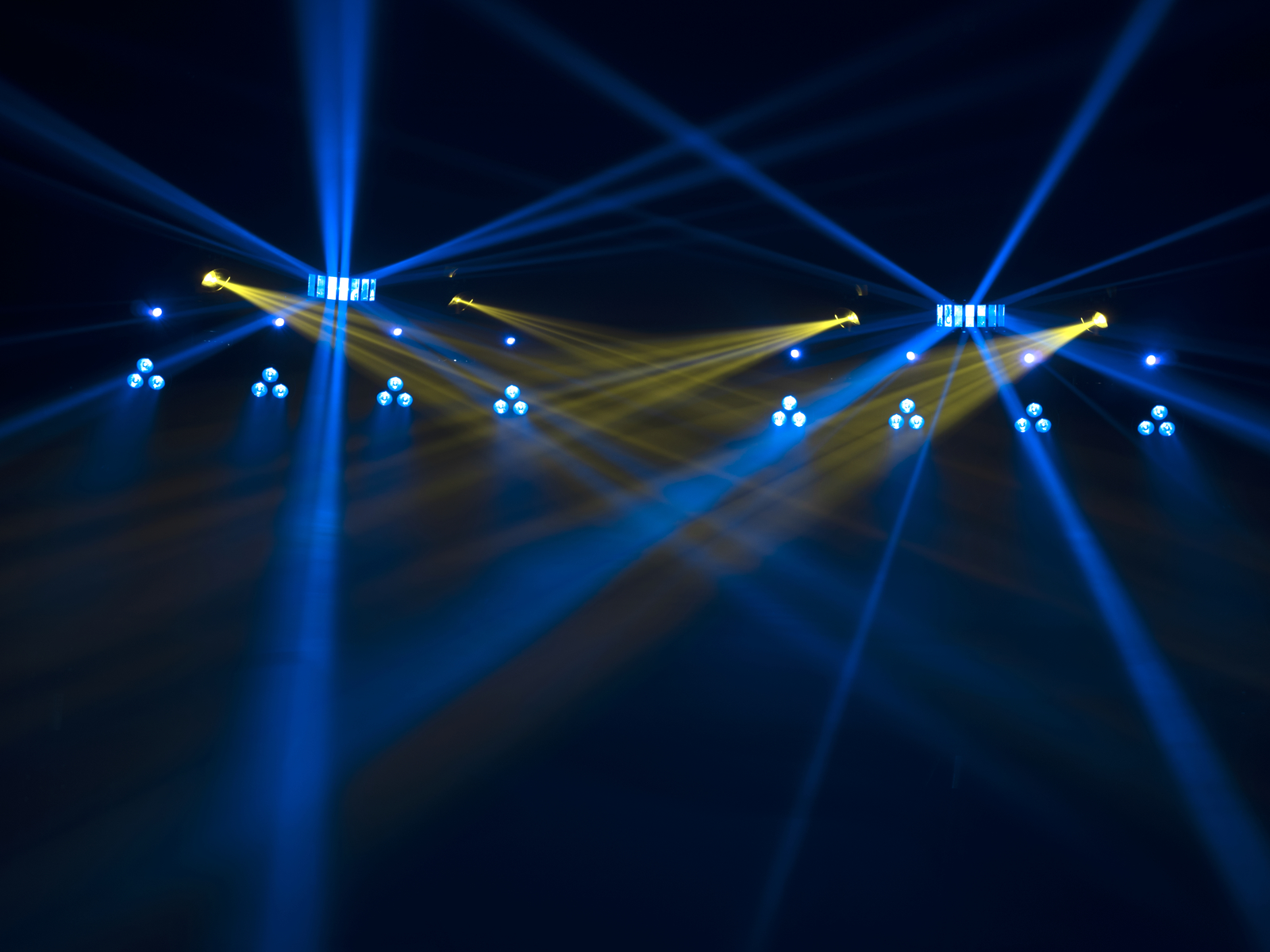

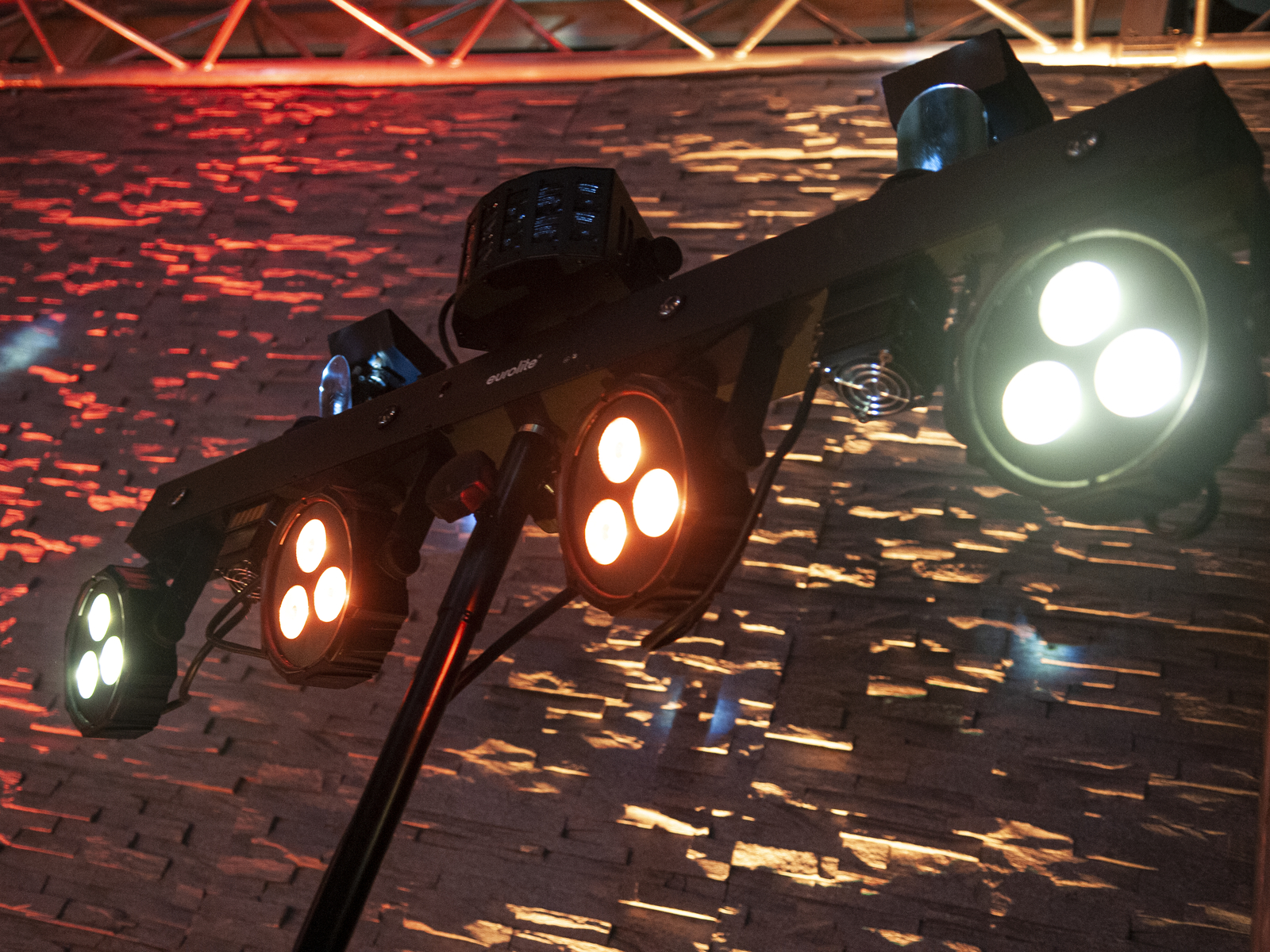

EUROLITE LED KLS Scan Next FX Compact Light Set example of use image 1
EUROLITE LED KLS Scan Next FX Compact Light Set
DIFFERENT DMX MODES
There are ten different DMX modes: In the smallest mode with three channels, the automatic and music-controlled programs can be called up and switched. The largest mode with 39 channels allows full control of each fixture, the derby and the scanners. In some modes, the two scanners are controlled together. In the menu, it is then possible to set that one or both axes of movement should be inverted, i.e. mirrored. This facilitates the control and results in a coherent picture.

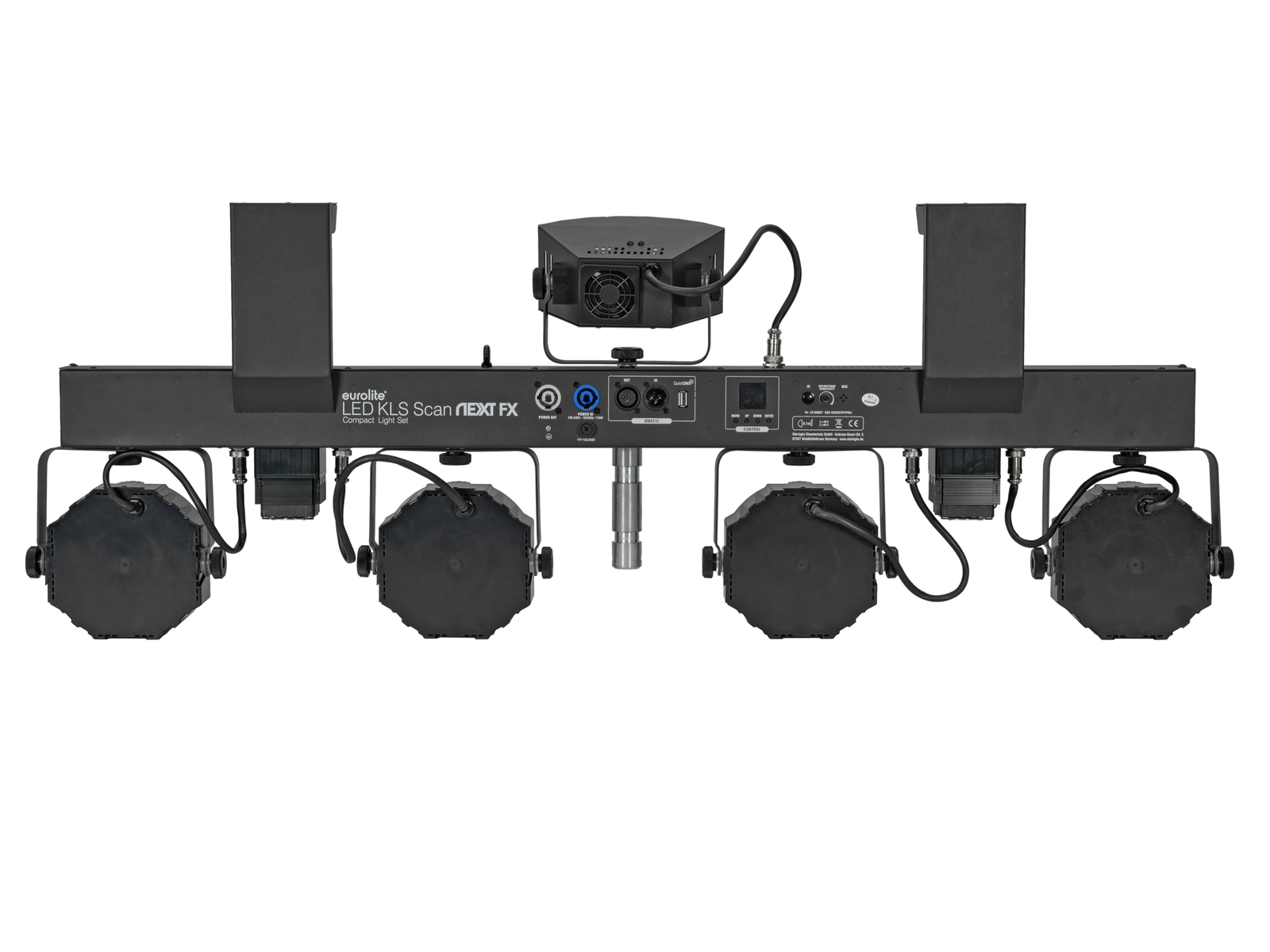

EUROLITE LED KLS Scan Next FX Compact Light Set connections
WIRELESS DMX
The KLS has a USB socket for QuickDMX. An optional DMX wireless adapter can be plugged into this to realize wireless DMX transmission. This works not only from one console to the KLS bars, but also with several KLS units for master-slave operation.

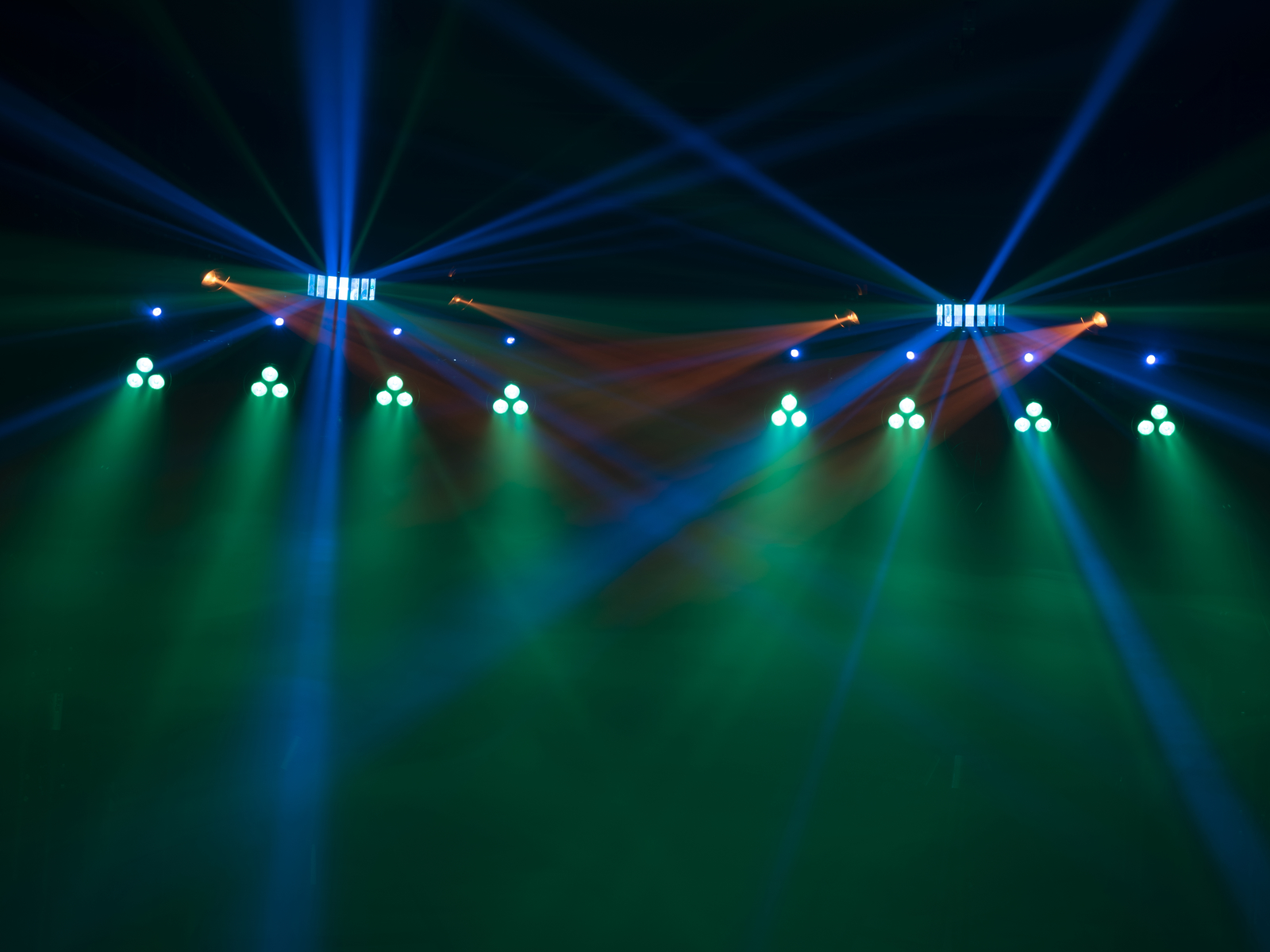

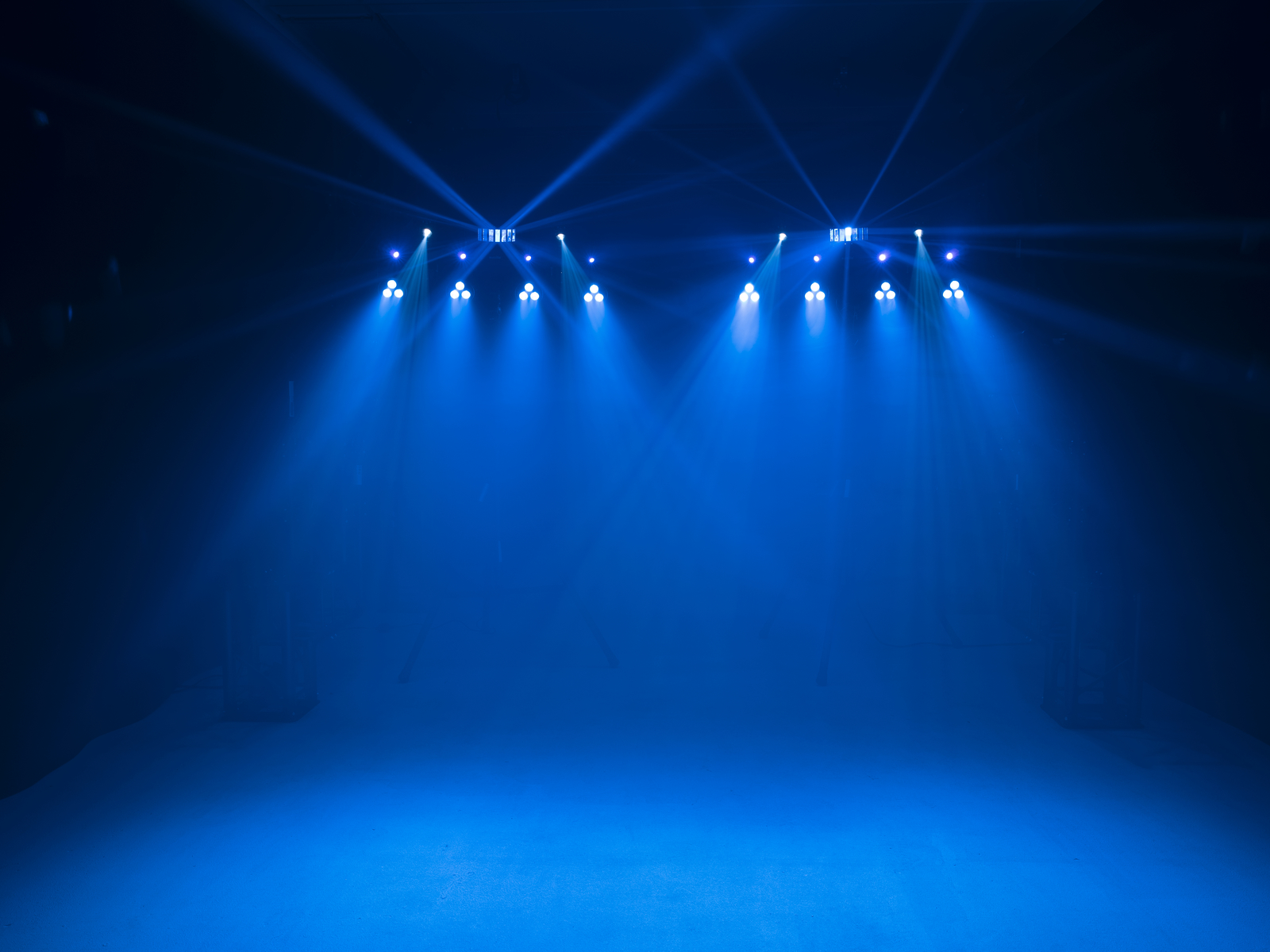

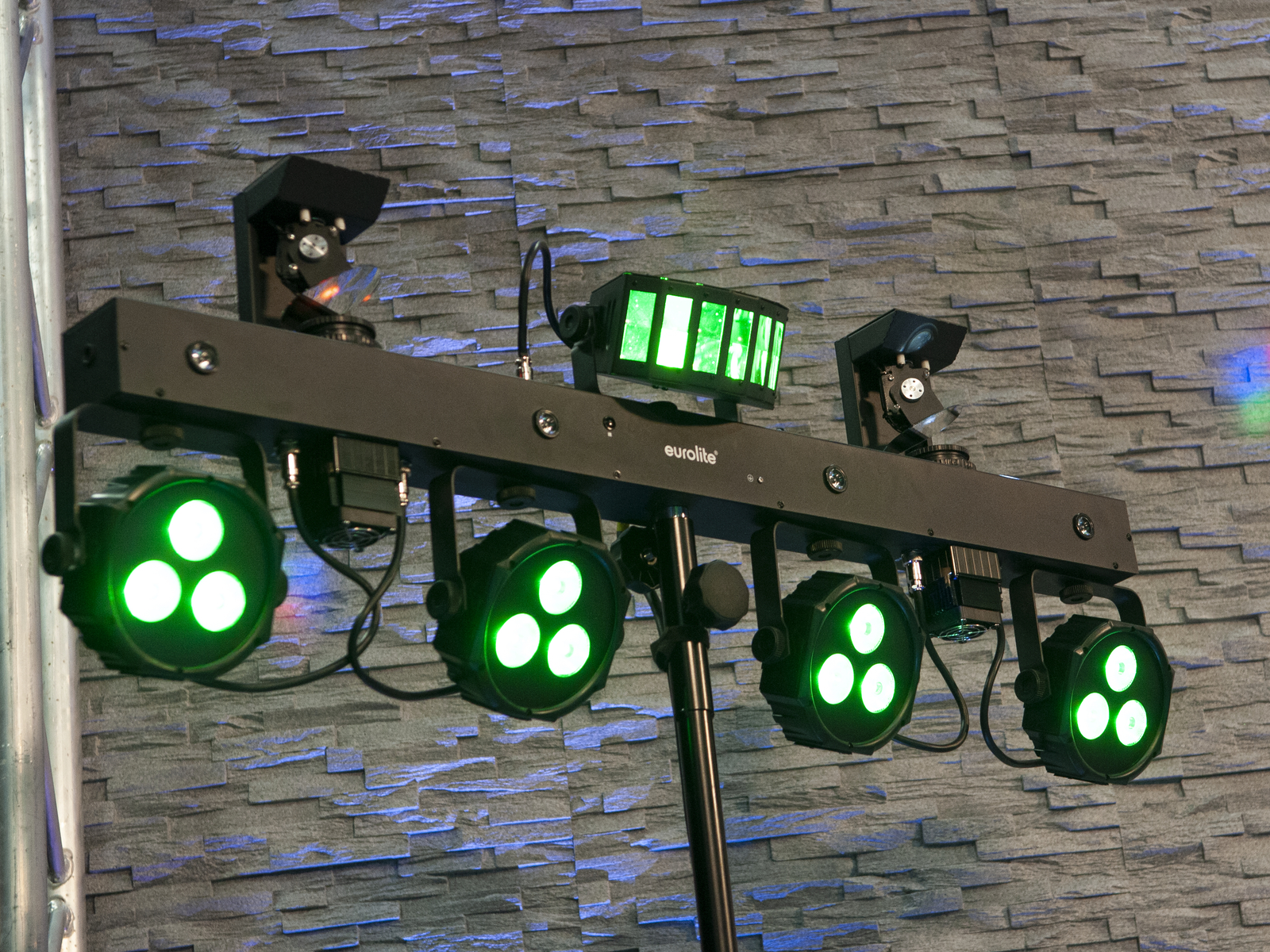

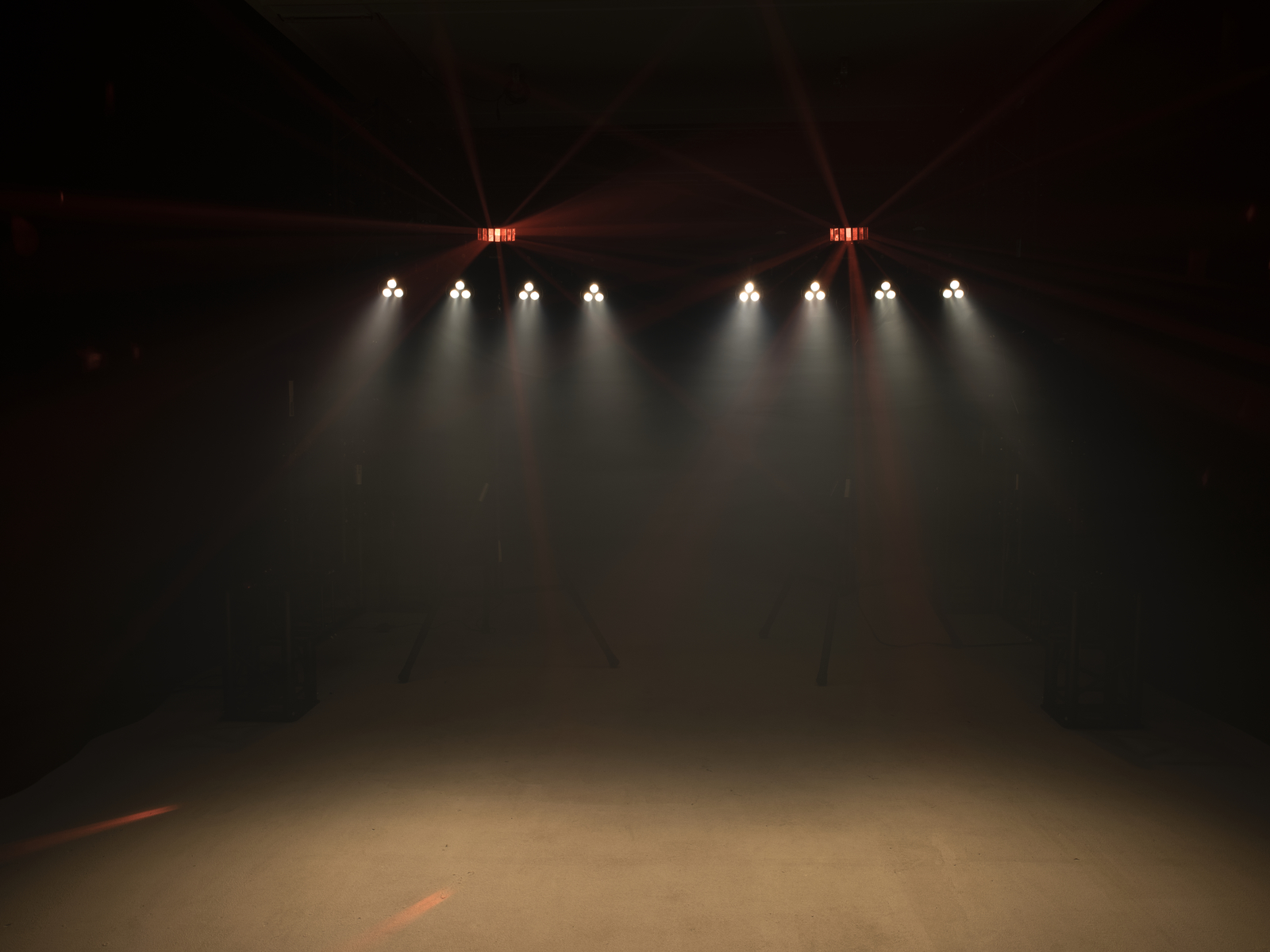

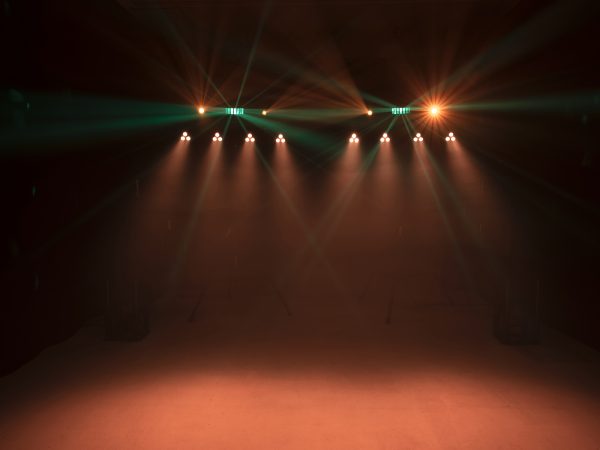

EUROLITE LED KLS Scan Next FX Compact Light Set example of use image 2
SAVE MONEY: THIS ARTICLE IS AVAILABLE IN A BUNDLE.

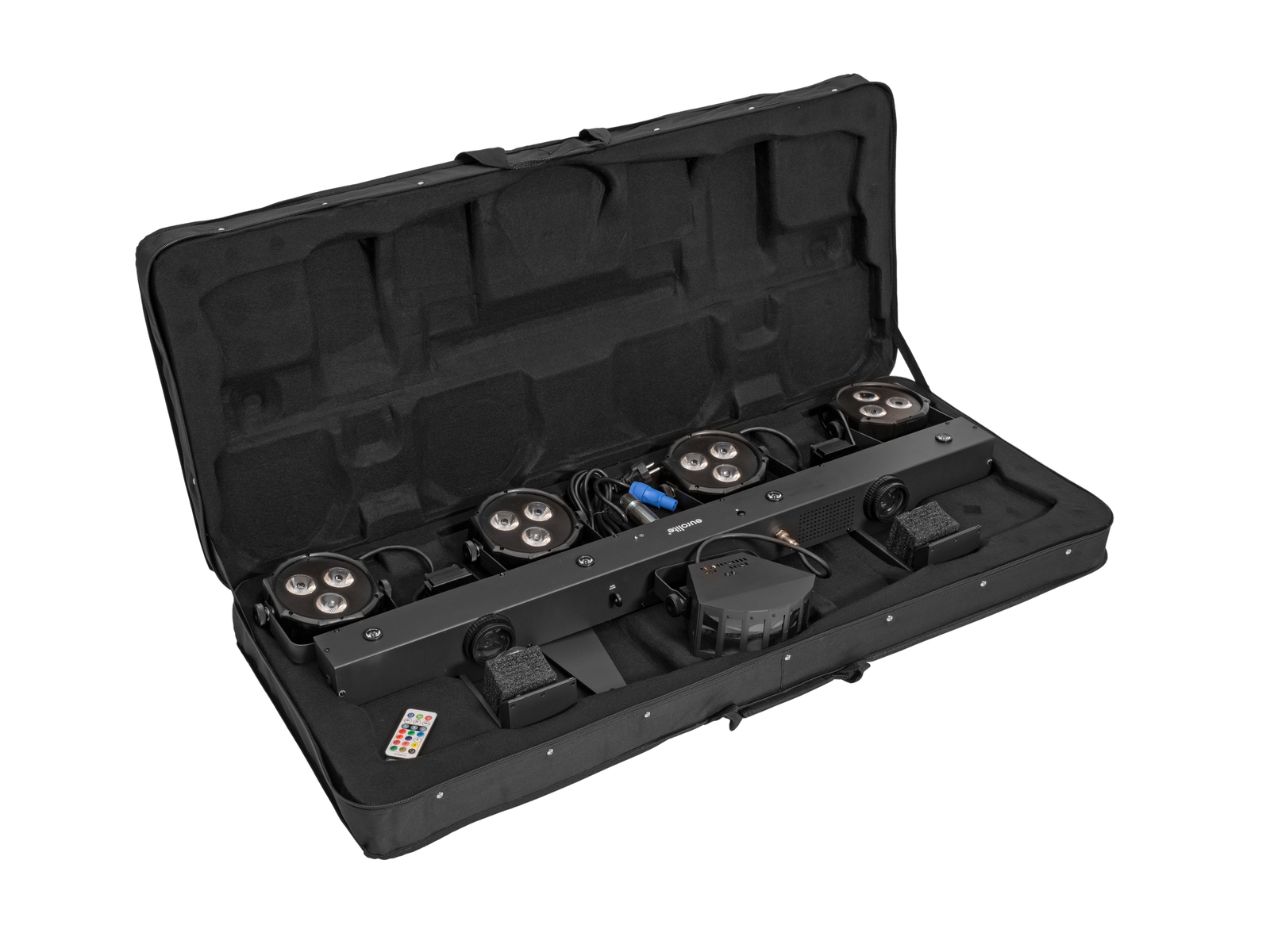

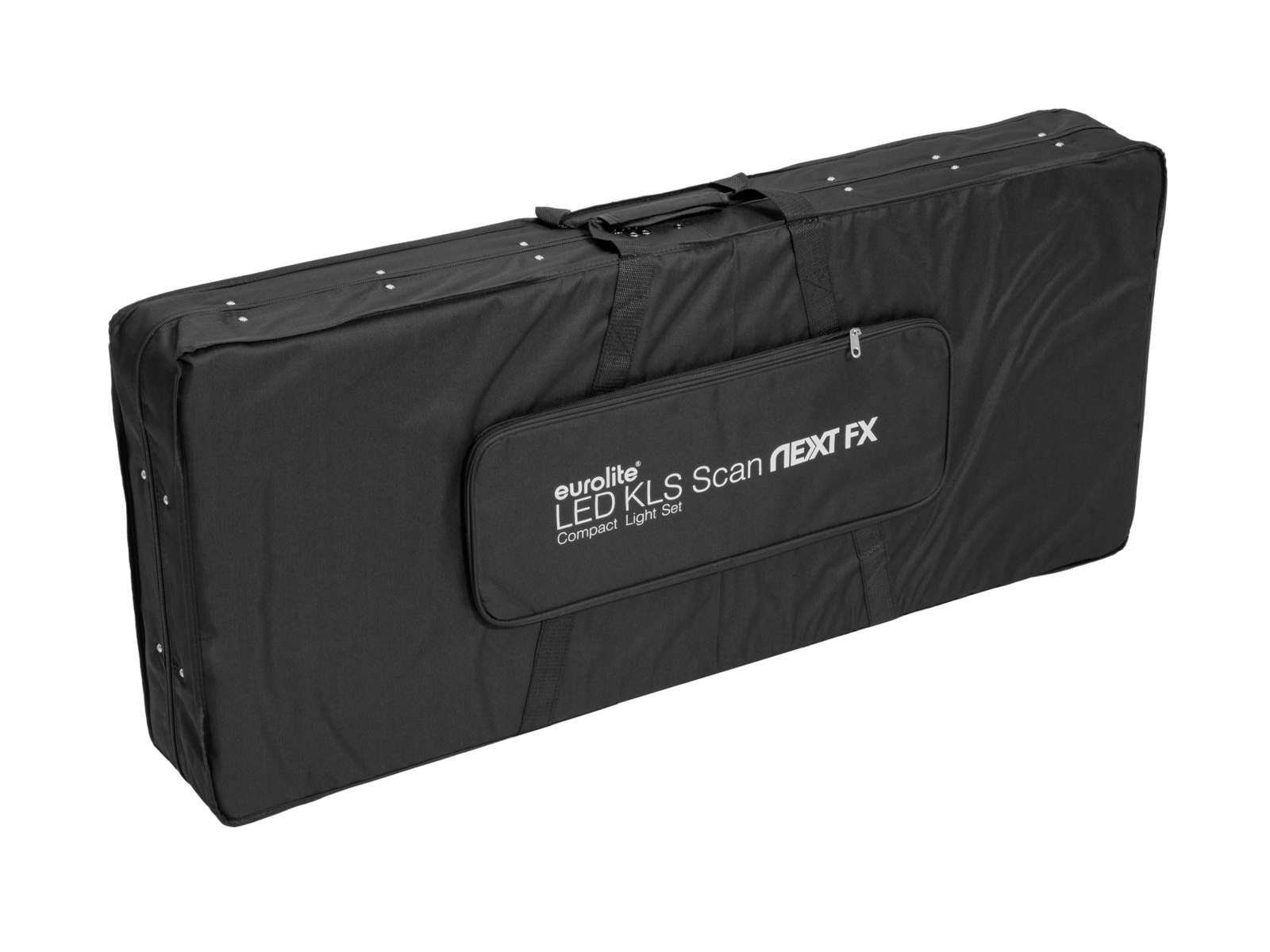

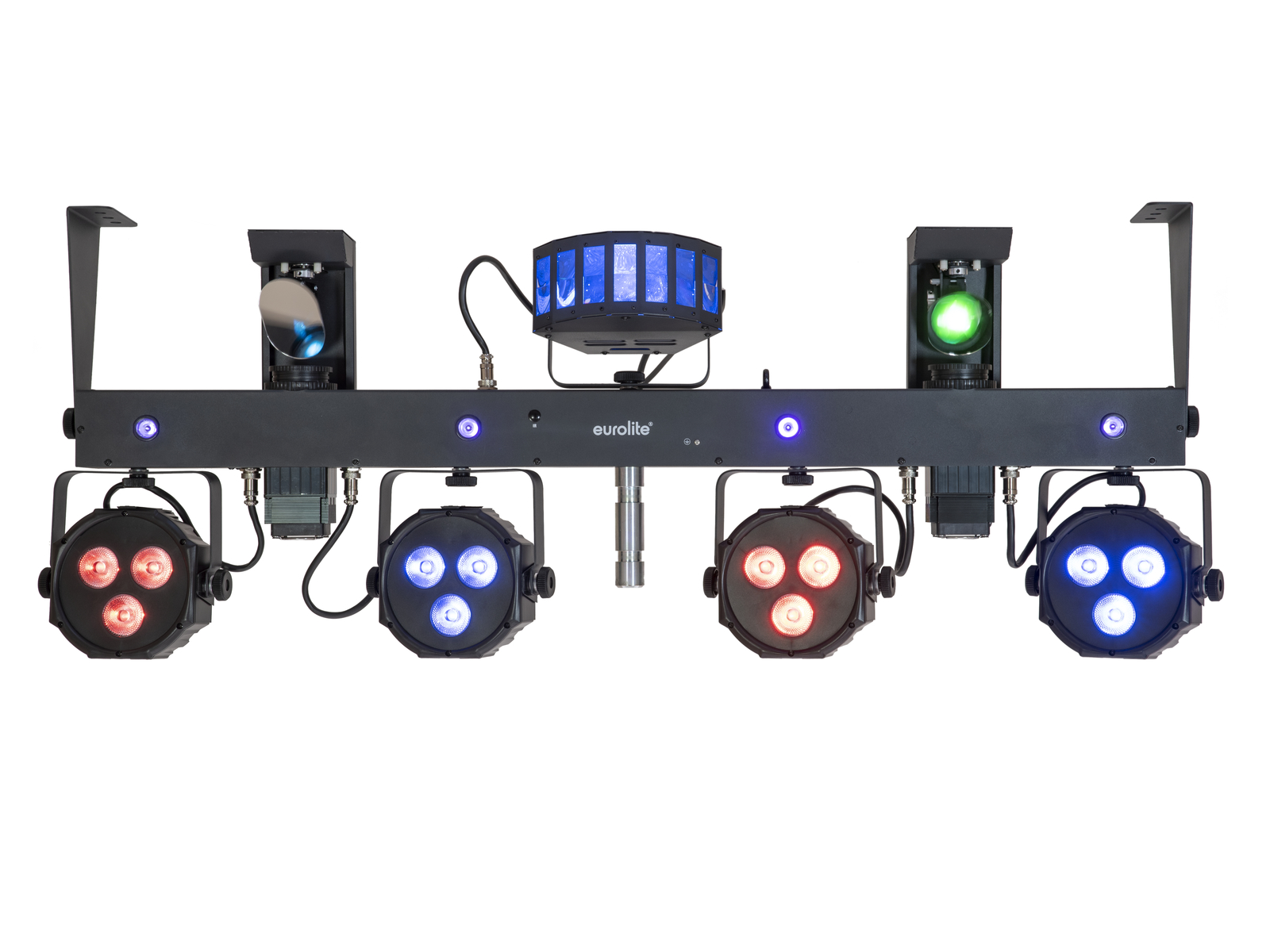

Compact bar with derby, spots, scanners, UV effect, QuickDMX port and bag

  • Crossbar with integrated DMX control unit and TV spigot for tripod installation
  • When fog is used, this effect becomes especially attractive
  • Positioning within PAN and TILT
  • Color wheel; gobo wheel with static gobos
  • 20 integrated show programs
  • Control via DMX; IR remote control; Sound to light via Microphone; stand-alone; Master/slave function; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
  • OLED display
  • For application areas such as: Wedding/gala/events; Lender; Small lender; mobile use
  • Mains input and output for power linking up to 8 units
  • Color wheel with 8 dichroic filters plus open
    half colours selectable
  • Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 3

spotlight

  • 3 powerful LEDs 7 W high-power 4in1 QCL RGB/WW (homogenous color mix)
    4 spots separate controlling
  • With a beam angle of 15°

light effect

  • 2 powerful LEDs 3 W R/G/B

moving light

  • 1 powerful LED 15 W cold white (CW)

bar

  • 4 powerful LEDs 1 W high-power ultra violet (UV)
    LEDs separate controlling

Package contents

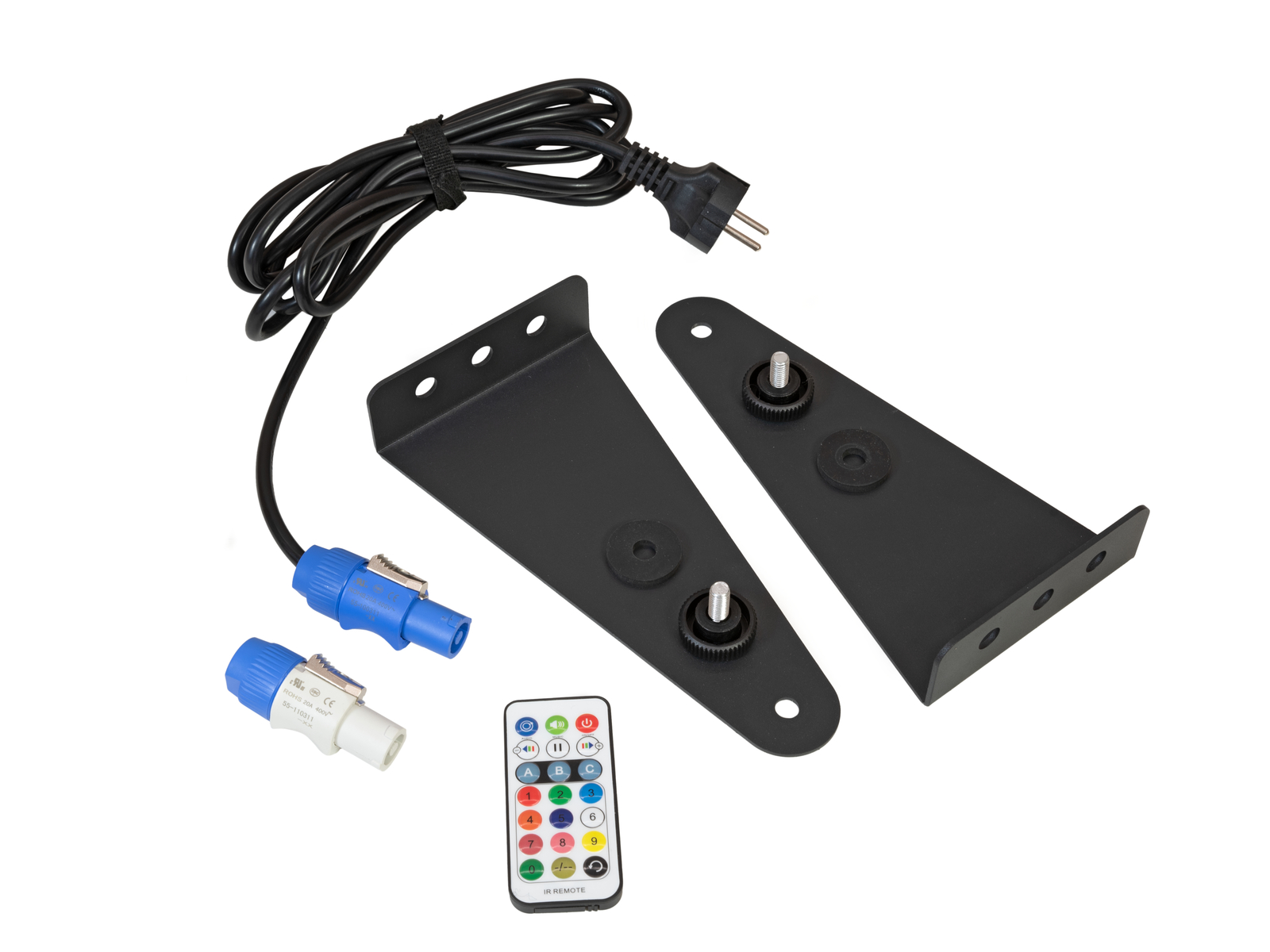

  • 1 x device, 1 x user manual, 1 x power cord, 1 x declaration of conformity, 2 x mounting bracket, 1 x remote control, 1 x battery, 1 x bag, 2 x knurled screw, 2 x washer, 1 x terminating plug (power)
Weight 13,8 kg
