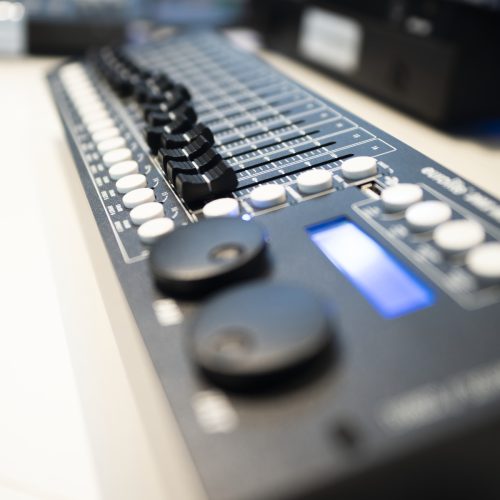

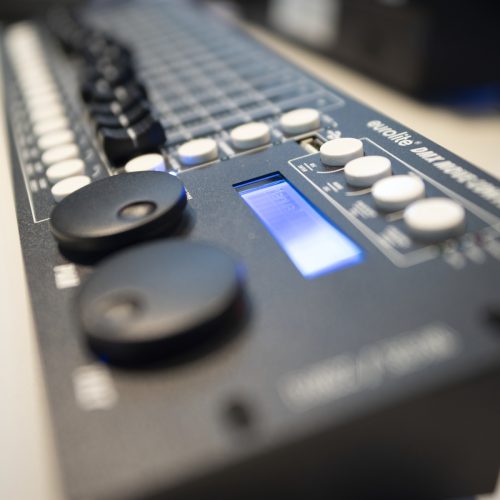

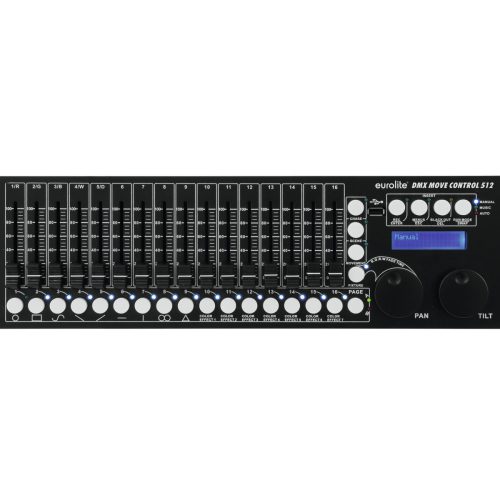

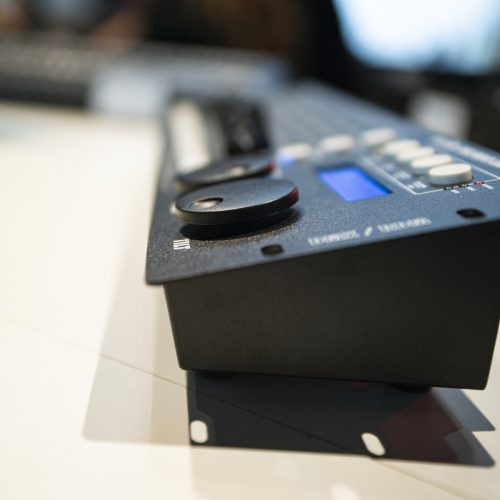

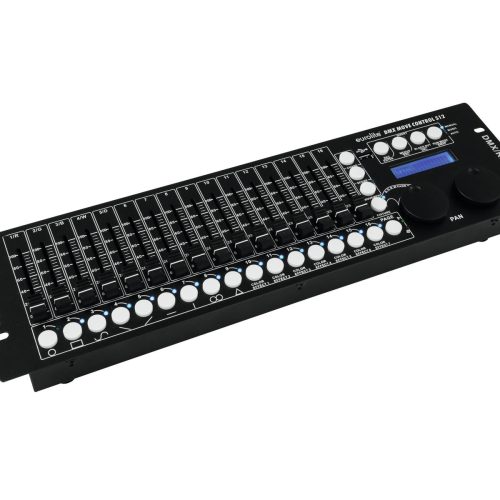

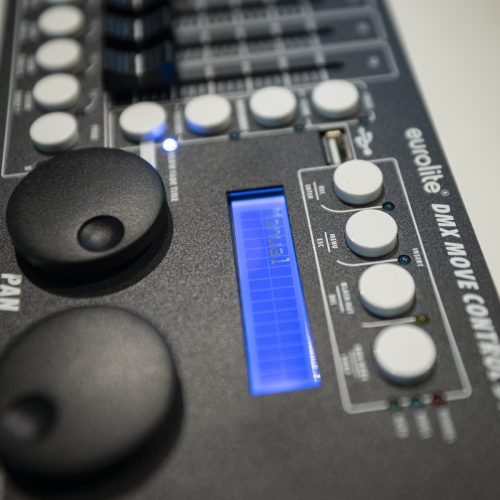

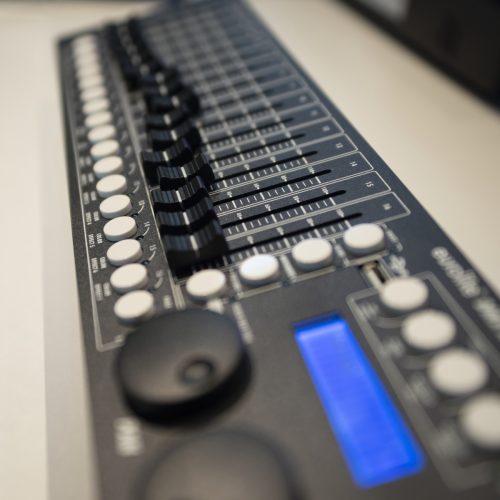

EUROLITE DMX Move Controller 512

Controller with color & motion effects (28 devices, 18 control channels each)

• DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
• 512 DMX channels can be assigned and inverted as desired to 32 control channels (softpatch)
• For 28 fixtures with 18 control channels each
• USB port for storing program data
• Quick programming thanks to 9 integrated movement patterns and 7 color effects (PAN/TILT position, fade time and running time adjustable)
• Manual, time-controlled or sound-controlled chase running mode
• 2 DMX fixture levels can be controlled, each with up to 18 channels
• 16 DMX channel faders
• 2 jog wheels for pan/tilt
• Blackout function
• Firmware update via USB
• Programmable 32 sequencens each with 600 scenes
• Can transmit up to 512 DMX channels
• Control via DMX; RDM
• Monochrome LCD display
• (19″) 48.3 cm rack installation 3 U
• Desktop console housing

Package contents

• 1 x controller, 1 x user manual, 1 x external mains adapter
